Vanta™ Handheld XRF Analyzer

Maximize Efficiency in the Field and Lab

Request Quote

Instantly identify materials and their chemical composition from any location using the Vanta handheld XRF analyzer. The Vanta series delivers fast, accurate elemental analysis and material identification using smart and cloud-connected technology.

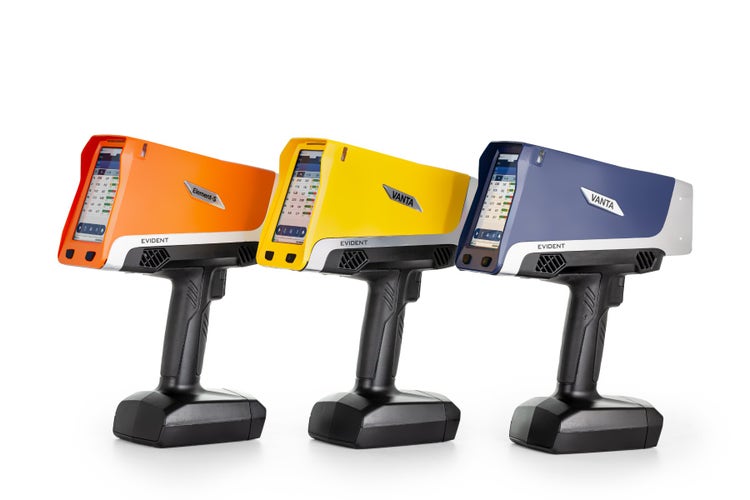

Our next-generation Vanta handheld XRF analyzers are available in three versatile models—Vanta Max, Vanta Core, and Vanta Element. They combine the exceptional accuracy, speed, and durability of the Vanta series with improved ergonomics, a streamlined interface, and enhanced connectivity for greater productivity. All Vanta analyzers are backed by a three-year warranty for a low cost of ownership.

Comfortable and Rugged for All-Day XRF Testing

With an enhanced ergonomic design, Vanta handheld XRF analyzers are a productive tool for extended use in the field and lab. Combined with their proven ruggedness and ease of use, Vanta analyzers can increase uptime in the toughest environments.

• Balanced handle minimizes hand fatigue
• Secure and comfortable grip for all-day testing
• Built to pass a 4-foot drop test (MIL-STD-810G)
• IP55/IP54 rated for resistance to water and dust
• Standard three-year warranty protects your investment

Productive XRF Analysis Workflow

Designed with the technician in mind, the Vanta analyzer simplifies handheld XRF testing from start to finish to maximize user throughput. Work efficiently using a modern, intuitive interface and browser-based software option.

• Review, share, and manage XRF results on a PC, tablet, or smartphone with an optional wireless connection for seamless data integration
• Benefit from the latest features instantly thanks to automatic software updates
• Enhanced application support with the option to add custom analytical capabilities
• Access our Evident Connect cloud for seamless data management

Trusted Portable XRF Technology

Vanta handheld XRF analyzers are used by thousands of customers around the world in diverse applications. Building on proven performance, Vanta analyzers provide precision and accuracy for portable XRF analysis.

• Vanta series’ proprietary Axon Technology uses ultra-low-noise electronics, enabling a higher X-ray count rate for fast, accurate, and repeatable results
• Axon Technology provides remarkable test-to-test and instrument-to-instrument repeatability, so your first test is the same as your last test no matter what instrument you use

Software Features That Deliver Fast ROI

Vanta handheld XRF analyzers feature innovative software features designed to maximize their capabilities.

• SmartSort: automatically lengthens or shortens test time based on the material to save time; obtain aluminum grade results in as little as one second
• Grade match messaging: real-time and/or pop-up messages with familiar trade or grade names or special handling instructions to reduce user training and increase efficiency
• Nominal value: automatically identifies the likely presence of elements invisible to XRF based on grade specifications
• Residual library: set a maximum tolerated concentration for residual elements in grade families
• On-screen grade comparison: compare close grades side-by-side to know which alloy is the best match with nominal and residual values
• Empirical Mode for advanced analysis

Connected and Cloud Capable

• Wireless connectivity: access our Evident Connect cloud or other devices with optional Wi-Fi^® and Bluetooth^®.
• Embedded GPS: pair test results with precise GPS* coordinates to document and map the location of elements
• Streamlined reporting: combine GPS data, XRF test results, and images from the optional 5-megapixel panoramic camera for inclusive archiving and streamlined reporting

_{*Vanta Max model only}

Customizable for Efficient Fleet Management

Vanta analyzers are designed to enable efficient fleet management in conjunction with Vanta Desktop PC software.

• Customizable UI: set up the interface the way you want to maximize throughput and efficiency.
• Favorites: choose what tests or features appear on the analyzer’s home screen.
• Username and password: managers can create unique usernames and passwords for each user.
• Push custom setups: easily transfer custom setups and specifications to your entire analyzer fleet.
• Simple data export: data are quickly and easily exported via a USB flash drive, Wi-Fi, or Bluetooth.

_{The Bluetooth}^® _{word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Evident Corporation is under license.}

Vanta Work Station

The portable Vanta Work Station is battery operated for testing on the go. A fully interlocked lid and 360-degree shielding make it convenient for bagged, prepped, and liquid samples or small objects, including jewelry and circuit boards. In this closed-beam setup, users operate the analyzer using Vanta PC software or the Vanta mobile app.

The portable Vanta Work Station is effective for a variety of applications:

• Geo exploration
• Mining process control
• RoHS/consumer products
• Environmental analysis

The Work Station’s stable platform enables longer test times. It gives you the freedom to start a test in the Work Station and complete other tasks while the Vanta instrument performs the analysis. You can be confident that the sample is stable and its position is reproducible, helping ensure high-quality data and efficient sample throughput.

Easy to Use

• Simply click the Vanta analyzer into place, and release it with the press of a button
• Balanced lid system to prevent slamming
• Easy sample placement—no front wall or lip obstruction
• Control the Vanta analyzer and transfer data wirelessly or via a USB cable

Portable

• Battery or AC powered for benchtop or field use
• Easy to transport and set up
• Chamber and legs separate for easy storage
• Optional carrying case

Designed for Safety

• Fully shielded and interlocked chamber: 107 mm × 178 mm × 179 mm (4.2 in. × 7 in. × 7 in.)
• Radiation warning LEDs are large, clear, and prominent

Small Footprint

• 346 mm X 326 mm (14.4 in. × 13 in.)

Vanta Soil Foot

The Vanta Soil Foot provides a stable three-point support for the Vanta analyzer. This accessory facilitates hands-free analysis, making it convenient when longer test times are required.

Vanta Field Stand

When testing small items, such as samples in cups or bags, the Vanta Field Stand offers a lightweight, mobile test stand and shielded sample chamber. The Field Stand is easy to pack and convenient to use when you are away from your office.

Vanta Holster

Keep your Vanta analyzer safe and secure and within easy reach with the Vanta Holster. The Holster has a strap with a fastener to secure the instrument, MOLLE/PALS webbing for additional attachment options, and brass shielding.

Vanta Probe Shield

The Probe Shield provides additional shielding from backscattered radiation from testing low-density samples. This accessory provides an increased measure of protection by reducing the X-ray backscatter in the direction of the user during a test.

Vanta Hot Heel

For testing high-temperature piping or equipment up to 900 °F (480 °C), the Hot Heel minimizes heat transfer to the Vanta analyzer while reducing surface contamination. The Hot Heel kit includes high-temperature measurement windows.

Vanta Weld Mask

The Weld Mask prevents interference from the base metal when analyzing weld beads. This accessory replaces the Vanta analyzer’s faceplate and collimates the beam to a 3 mm wide slot for rapid analysis of weld beads.

Vanta Carry Case

Rugged, hard-shell case to securely transport your Vanta handheld XRF analyzer.
