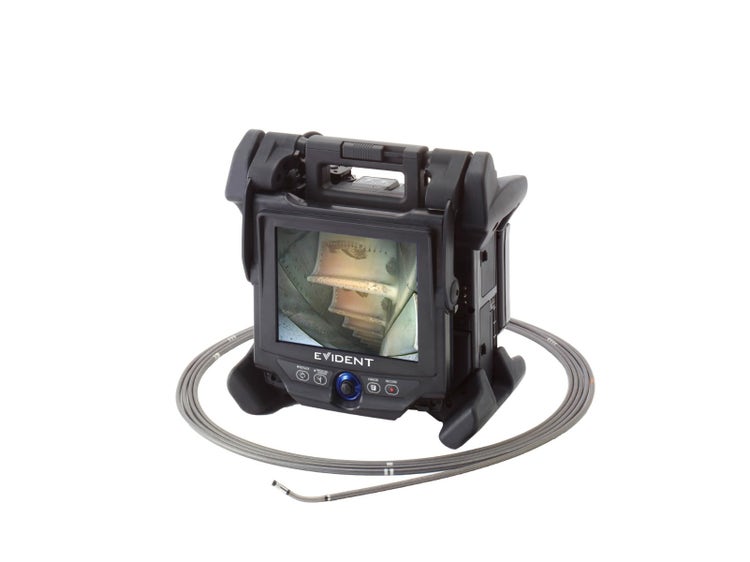

IPLEX NX Videoscope
The IPLEX NX video borescope combines our highest-quality images with an intuitive user interface, ergonomic design, and durability for efficient inspection in nearly any environment.
IPLEX-NX
Measure with Confidence Using 3D Modeling
Choosing the right measurement point is now even easier. 3D modeling with the IPLEX NX video 3D borescope enables you to see the details of what you’re inspecting from multiple angles, making it easier to specify the exact location of your measurement points.
- Visual Inspection
- Video Borescopes
Unleash the Power of One
IPLEX™ One Videoscope Solution
The 10th generation of the IPLEX videoscope system, IPLEX One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead. Combining groundbreaking Swoptix 3D measurement technology with viewing and analysis upgrades and modular scalability, IPLEX One redefines what’s possible in remote visual inspection.
Instantly Confirm Measurement Objects
- 3D modeling enables you to clearly see the shape and complexity of your target
- Precisely designate your measurement points for faster inspections
- Choose the right points the first time to minimize the need to re-measure
Set Reference Lines Where You Want Them
- 3D images facilitate reliable reference lines on difficult components, such as the edge of a turbine blade
- Reduce the chance of misalignment
Make Confident Depth Measurements
- Confirming the reference plane is intuitive
- Specify your measurement points with confidence for reliable depth measurements
Our Highest Quality Images
The IPLEX NX video 3D borescope delivers crisp, high-resolution images.
Its reliable image quality increases your probability of detection, helping you make clear decisions
and maintain crucial systems.
See Clearly
Exceptional image clarity enables you to see tiny defects in stunning detail.

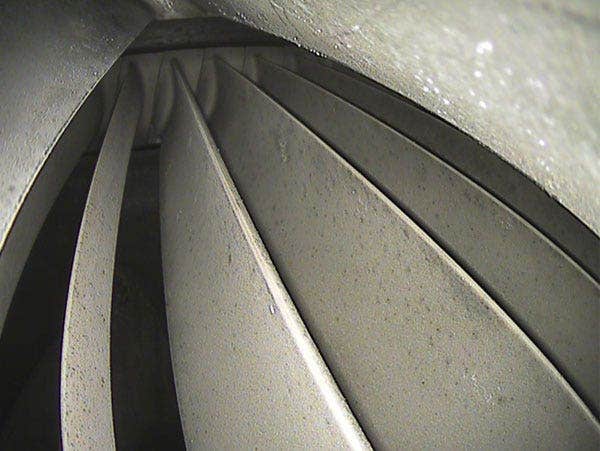

See More
Laser diode illumination system is up to 4 times brighter than conventional video borescopes.
Expanded Measurement Capabilities
Easy-to-use advanced stereo measurement offers expanded coverage for fast, efficient inspections.
See the Big Picture
- Super wide stereo measurement increases the measurable area by 4x* as compared to a conventional model
- Easily measure the distance of a crack in a combustion chamber or a defect in the blade root
*When contrasted with a conventional 6.0 mm diameter scope with a direct viewing stereo optical adaptor.
Convenient Scalar Measurement
- Simply define a reference line to use scalar measurement without changing the tip adaptor
Real-time Measurement with Multi Spot-Ranging
- The unique Multi Spot-Ranging function enables real-time measurement of the distance from the scope tip to multiple points on the inspection surface
- Get real-time surface shape information without stopping the inspection

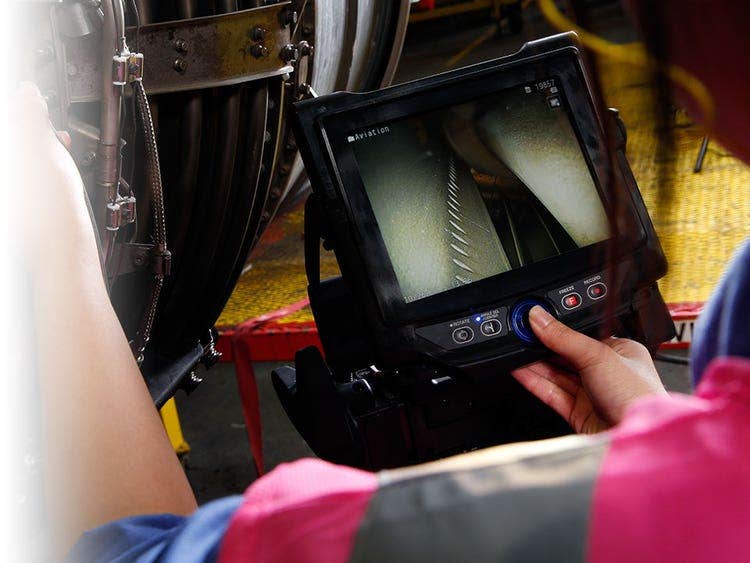

Large Touch-Screen Monitor
Vivid touch-screen delivers clear, bright images for excellent visibility in a range of lighting conditions.
Efficiency

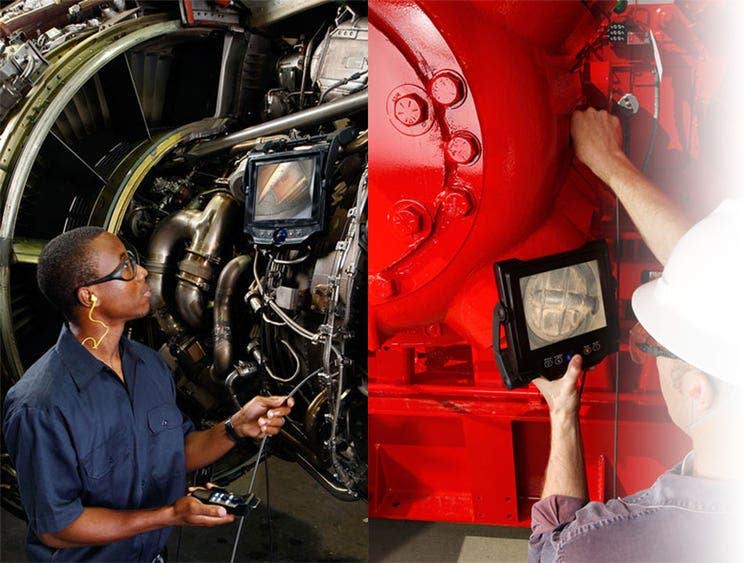

Efficient Inspections

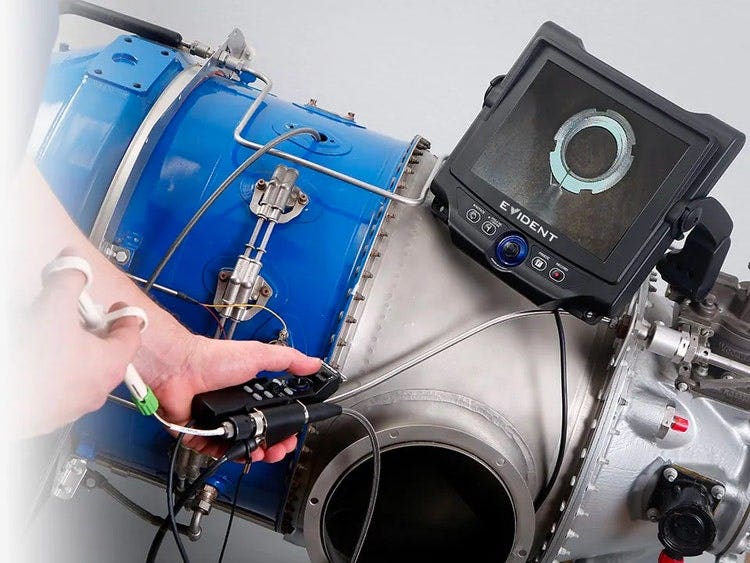

The IPLEX NX video 3D borescope is simple to operate and user friendly. Even during long inspections, the borescope’s comfort and maneuverability help make the job easier.
Flexible Multi-Position Design
- Configure the video 3D borescope six ways to maximize comfort

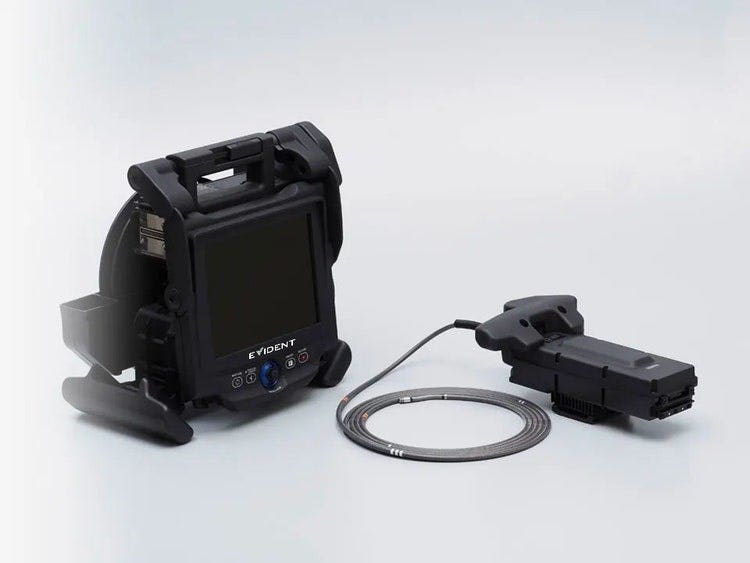

- Position the monitor for maximum visibility;

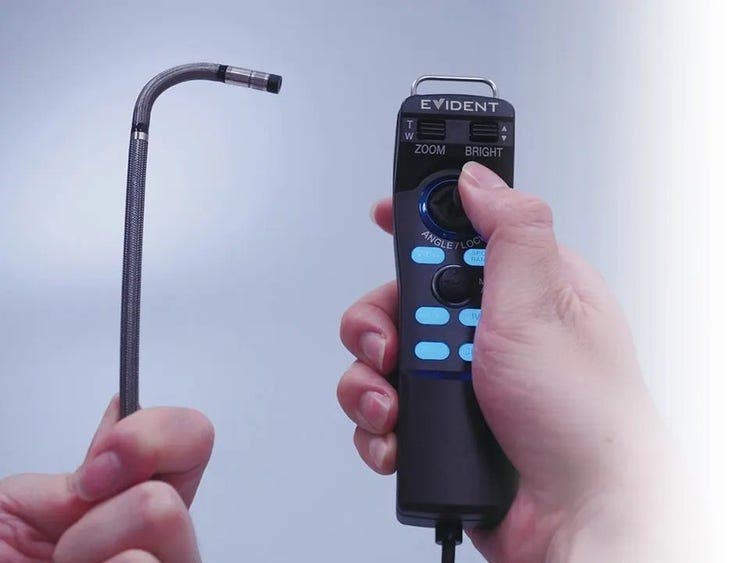

it can even be detached from the main unit - Optional handheld remote provides light, tactile control
Internal Working Channel Scope
With similar functionality and capability as a standard insertion tube, the working channel scope is a useful backup while offering the versatility to use it to detect and remove foreign object debris (FOD). Don’t get caught with a plane on the ground—add a working channel scope to your kit, so it’s there when you need it.
Interchangeable 6.2 mm (0.24 in.) diameter scope with internal working channel
Internal Retrieval Tools
Six internal retrieval tools enable you to remove foreign objects and perform hook-and-drag inspections in aircraft engines.
Responsive True Feel Articulation
- Fast, responsive articulation
- Easily control the scope through lightweight, comfortable operation that helps reduce fatigue
Interchangeable Scope for Multiple Jobs
- Pick the appropriate scope for the job
- 6.0 mm scopes ranging in length from 3.5 m (11.5 ft.) to 7.5 m (24.6 ft.) and 4.0 mm scopes with lengths of 3.5 m (11.5 ft.) and 5 m (16 ft.)
Compare Live and Stored Images
- Ghost image function enables you to compare live images with images stored on the video borescope to contrast past and present conditions
- Monitor changes in a component over time
Other Features
- Noise Reduction (NR) algorithm control for clearer images
- The durable Tapered Flex insertion tube
- Fine Mode articulation speed
- InHelp inspection assist software
- Image sharing (optional)
Specifications
SCOPE UNIT
| Model No. | IV9435N | IV9450N | IV9635N | IV9650N | IV9675N | IV9635X1N | |
| Insertion tube | Scope diameter | Φ4.0 mm | Φ6.0 mm | ø6.2 mm | |||
| Scope length | 3.5 m | 5.0 m | 3.5 m | 5.0 m | 7.5 m | 3.5 m | |
| Exterior | High - durability tungsten braid | ||||||
| Tube flexibility | Uniform stiffness | TaperedFlex tube with flexibility gradually increasing toward the distal end |
|||||
| Optical system | Field of view | Selectable by optical adaptor. Adaptor for Stereo measurement attachable | |||||
| Direction of view | |||||||
| Illumination | High - intensity laser diode | ||||||
| Articulation section | Articulation angle Up/Down/Right/Left |
130° | 180° | 150° | 130° | ||
| Articulation operation | 128 mm × 203 mm × 110 mm (4.9 in. × 8 in. × 4.3 in.) | ||||||
BASE UNIT
| Model No | IV9000N | ||||||
| Dimensions (W x H x D) | 320 mm x 310 mm x 180 mm | ||||||
| Approx. system weight (with battery and SDHC card) |
7.1 kg | 7.2 kg | 7.3 kg | 7.4 kg | 7.6 kg | 7.5 kg | |
| LCD monitor | 8.4-inch daylight-view, touch screen LCD, clear type | ||||||
| Input/Output terminal | Input terminal | S-Video | |||||
| Output terminal | VGA | ||||||
| USB connector | Type A connector, Version 2.0 standards | ||||||
| Power supply | Battery: 14.8 V nominal, approx. 100-minute operating time. AC power: 100 V to 240 V, 50/60 Hz (with supplied AC adaptor) |
||||||
| Recording media | SDHC card and USB flash memory(Still image recording only) | ||||||
| Still image recording | Resolution | H768 x V576 (Pixel) | H1024 x V768 (Pixel) | H768 x V576 (Pixel) | |||
| Recording format | Compressed JPEG format | ||||||
| Video recording | Resolution | H768 x V576 (Pixel) | H1024 x V768 (Pixel) | H768 x V576 (Pixel) | |||
| Recording format | MPEG-4 AVC (H.264) format, Windows Media Player compatible | ||||||
| Stereo measurement | Distance | Distance between two points | |||||
| Point-to-line | Perpendicular distance between a point and a user-defined line | ||||||
| Depth | Orthogonal depth/height distance between a point and a user-defined plane | ||||||
| Area/Lines | Multiple point circumference and area measurement | ||||||
| 3D Modeling | Live cross section, X/Y/Z-axis rotation, 2x Color mapping mode | ||||||
| Scalar measurement | Distance between two points based on a known measurement in the same plane | ||||||
OPTICAL ADAPTOR SPECIFICATIONS
ø4.0 mm Optical Adaptors
| AT80D/FF-IV94N | AT120D/NF-IV94N | AT120D/FF-IV94N | AT100S/NF-IV94N | AT100S/FF-IV94N | AT70D/70D-IV94N | AT50S/50S-IV94N | ||
| Optical system | Field of view | 80° | 120° | 120° | 100° | 100° | 70°/70° | 50°/50° |
| Direction of view | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 35 to ∞ mm | 2 to 200 mm | 17 to ∞ mm | 2 to 15 mm | 8 to ∞ mm | 5 to 200 mm | 3 to 150 mm | |
| Distal end | Outer diameter*2 | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm |
| Distal end*3 | 20.1 mm | 20.2 mm | 20.1 mm | 22.9 mm | 22.9 mm | 22.3 mm | 26.7 mm | |
ø6.0 mm Optical Adaptors
| AT50D/FF-IV96N | AT80D/FF-IV96N | AT120D/NF-IV96N | AT120D/FF-IV96N | AT120S/NF-IV96N | AT120S/FF-IV96N | AT90D/90D-IV96N | AT70S/70S-IV96N | ||
| Optical system | Field of view | 50° | 80° | 120° | 120° | 120° | 120° | 90°/90° | 70°/70° |
| Direction of view | Forward | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 50 to ∞ mm | 20 to ∞ mm | 7 to 300 mm | 19 to ∞ mm | 4 to 150 mm | 20 to ∞ mm | 5 to 250 mm | 4 to 250 mm | |
| Distal end | Outer diameter*2 | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm |
| Distal end*3 | 21.3 mm | 21.3 mm | 21.4 mm | 21.4 mm | 26.6 mm | 26.6 mm | 25 mm | 31.2 mm | |
ø6.2 mm Optical Adaptors
| AT80D-IV96X1N | AT120D/NF-IV96X1N | AT120D/FF-IV96X1N | AT80S-IV96X1N | AT120S-IV96X1N | AT70D/70D-IV96X1N | AT60S/60S-IV96X1N | ||
| Optical system | Field of view | 80° | 120° | 120° | 80° | 120° | 70°/70° | 60°/60° |
| Direction of view | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 35 to ∞ mm | 2 to 200 mm | 17 to ∞ mm | 30 to ∞ mm | 8 to ∞ mm | 5 to 200 mm | 3 to 150 mm | |
| Distal end | Outer diameter*2 | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm |
| Distal end*3 | 20.6 mm | 20.6 mm | 20.6 mm | 24.4 mm | 24.4 mm | 22.7 mm | 28.3 mm | |
*1. Indicates the viewing distance with optimal focus.
*2. The adaptor can be inserted into a ø4.0 mm, ø6.0 mm and ø6.2 mm hole when it is mounted on the scope.
*3. Indicates the length of the rigid portion at the scope’s distal end when mounted.
OPERATING ENVIRONMENT
| Operating temperature | Insertion tube | In air : -25 to 100 ℃ In water : 10 to 30 ℃ |
| Other parts | In air : -21 to 49 ℃ (with battery) In air : 0 to 40 ℃ (with AC power adaptor) |
|
| In air: 0 ℃ to 40 ℃ (32 °F to 104 °F) (with AC power adapter and charged battery) | ||
| Relative humidity | All parts | 15 to 90% |
| Liquid resistance | All parts | Operable when exposed to machine oil, light oil or 5 % saline solution |
| Dust proofing and waterproofing | Insertion tube | Operable under water with viewing tip adaptor attached Not operable underwater with stereo measurement tip adaptors IV94 series — Up to an equivalent to 5.0 m(16.5 ft) in depth. IV96 series — Up to an equivalent to 7.5 m (24.6 ft) in depth |
| Other parts | Operable in blowing rain conditions (battery compartment must be closed). Not operable under water |
MIL-STD Compliance
The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461G.
No warranty is given as to damage-free under any conditions. Please ask your local Evident representative for details
| Type | Method |
| Low atmosphere | MIL-STD-810G, Method 500.6 |
| High temperature | MIL-STD-810G, Method 501.6 |
| Cold temperature | MIL-STD-810G, Method 502.6 |
| Rain and Blowing rain | MIL-STD-810G, Method 506.5 |
| Humidity | MIL-STD-810G, Method 507.5 |
| Salt Fog | MIL-STD-810G, Method 509.5 |
| Blowing dust | MIL-STD-810G, Method 510.5 |
| Explosive Atmosphere | MIL-STD-810G, Method 511.5 |
| Vibration | MIL-STD-810G, Method 514.6 |
| Shock | MIL-STD-810G, Method 516.6 |
| Icing/Freezing Rain | MIL-STD-810G, Method 521.3 |
| Conducted susceptibility Power leads | MIL-STD-461G, CS101 (IV9635X1N, IV9435N and IV9450N only) |
| Conducted susceptibility Bulk cable injection | MIL-STD-461G, CS114 (IV9635X1N, IV9435N and IV9450N only) |
| Conducted susceptibility Damped sinusoidal transient | MIL-STD-461G, CS116 (IV9635X1N, IV9435N and IV9450N only) |
| Radiated emission Magnetic Field | MIL-STD-461G, RE101 (IV9635X1N, IV9435N and IV9450N only) |
| Radiated emission Electric Field | MIL-STD-461G, RE102 Below Deck (IV9635X1N, IV9435N and IV9450N only) |
| Radiated susceptibility Magnetic Field | MIL-STD-461G, RS101 (IV9635X1N, IV9435N and IV9450N only) |
| Electromagnetic Interference (EMI) | MIL-STD-461G, RS103 Above Deck (IV9635X1N, IV9435N and IV9450N only) |
| MIL-STD-461F, RS103 Above Deck (excluding IV9635X1N, IV9435N and IV9450N) |

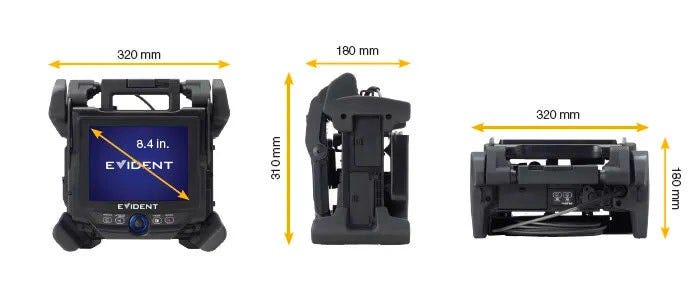

DIMENSIONS
