IPLEX One

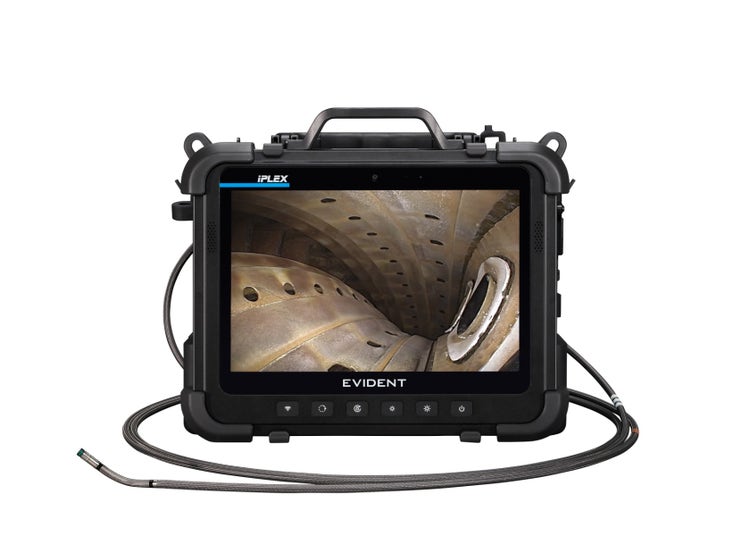

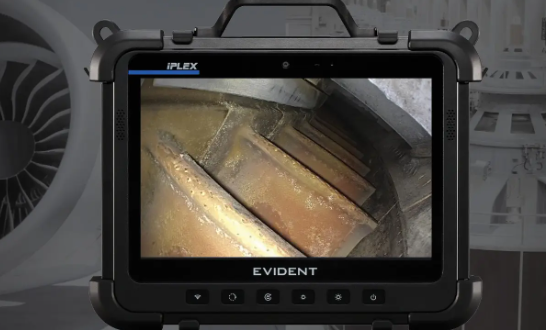

The 10th-generation evolution of the IPLEX videoscope system, IPLEX™ One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead—no matter the environment or application. Combining breakthrough optics, rugged design, and modular scalability, IPLEX One redefines what’s possible in remote visual inspection (RVI).
From groundbreaking Swoptix™ technology to measurement and viewing upgrades to secure wireless freedom—and the exceptional image quality that has always been a pillar of the IPLEX system—IPLEX One is more than next-gen. It’s the beginning of something better.
A Unified, Scalable, Software-Driven Ecosystem
Unleash the Power of One
IPLEX One is a unified, scalable ecosystem that consolidates software, insertion tubes, and optical tip adapters into a single shared platform. With performance tiers—Plus, Expert, Prime—all based on the same hardware, upgrades can be done via software, allowing the system to easily evolve without any hardware upgrades.
One System that Evolves with You
IPLEX One is a platform—not a product. It’s designed to simplify today’s inspections and scale effortlessly for tomorrow’s challenges.
- Flexible, software-based scalability: Start with the features you need and unlock advanced capabilities like 3D modeling or measurement via modular software licensing—no hardware swaps needed.
- Limitless configurations for a smarter investment: With a variety of optical tips and a flexible “buy what you need” model, IPLEX One delivers customization and future-readiness without overextending your budget.
- Connected by design: Compatible with ViSOL™ workflow solution and third-party applications, IPLEX One seamlessly integrates into digital workflows, enabling smarter data capture, reporting, and collaboration.
Accelerated Imaging, Analysis, and Measurement
Breakthrough optics and measurement technology unlock unmatched clarity, precision, and speed—without disrupting your workflow.
- Industry-first Swoptix™ multiview technology: Instantly switch between near and far focus and direct and side view focus without withdrawing the scope, cutting down on inspection time and reducing wear on optical tips. Up to twice the productivity with half the fatigue and wear of traditional RVI systems.

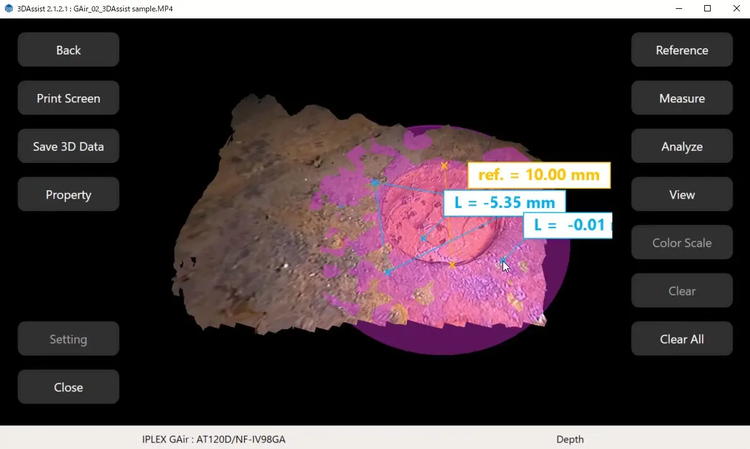

- 3DAssist™ modeling: Exclusive to Evident, 3DAssist software allows you to create detailed 3D images from a single optical path—no stereo tip required.

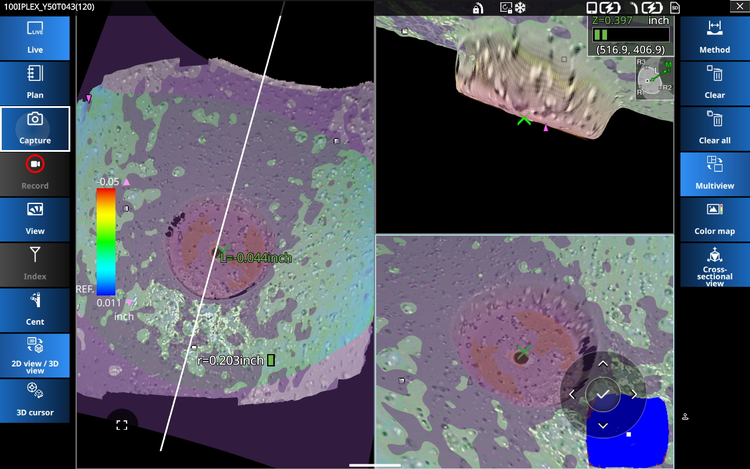

- Swoptix single-screen measurement: Perform full-frame 4mm and 6mm measurements instantly, increasing speed and reducing interruptions to your inspection flow.
- Instant edge-to-edge, full-screen clarity: Real-time, high-resolution imaging across the entire display, enabling more accurate defect identification and faster decision-making.
- Split-screen viewing: Side-by-side visual comparisons and measurement overlays for deeper inspection insights—all within a single interface.

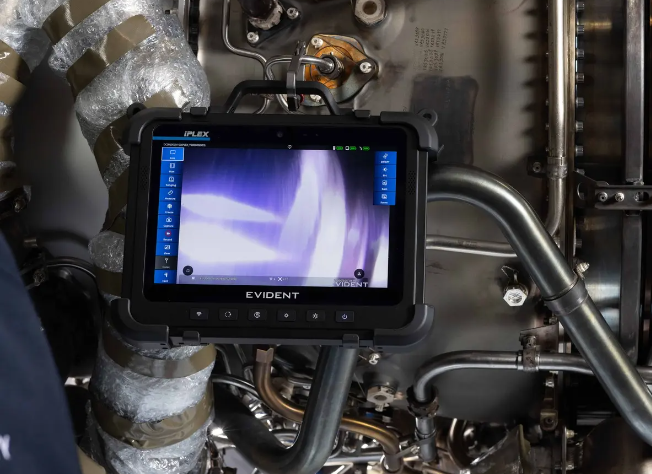

Instantly switch between near and far focus and direct and side view focus with Swoptix™ multiview technology
Built for How You Work

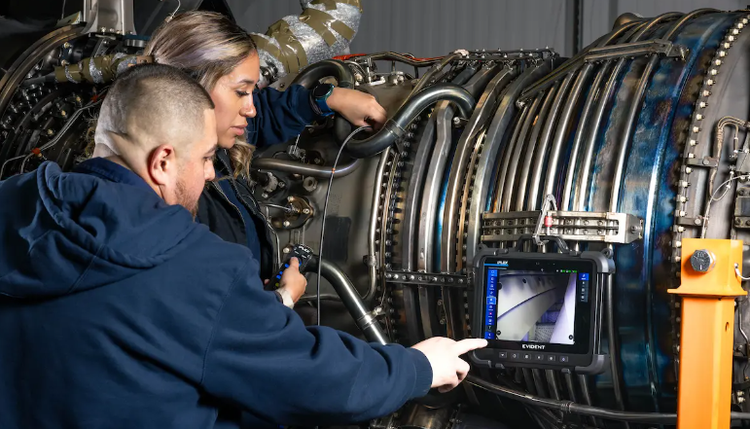

Designed for aviation, power generation, oil and gas, and security applications, IPLEX One is built to move with you, adapt to your environment, and operate without limits.
- Smaller, lighter, more portable: IPLEX One is more compact than previous IPLEX models and features a brilliant 10-inch screen, making it easier to transport and use in tight or elevated environments.

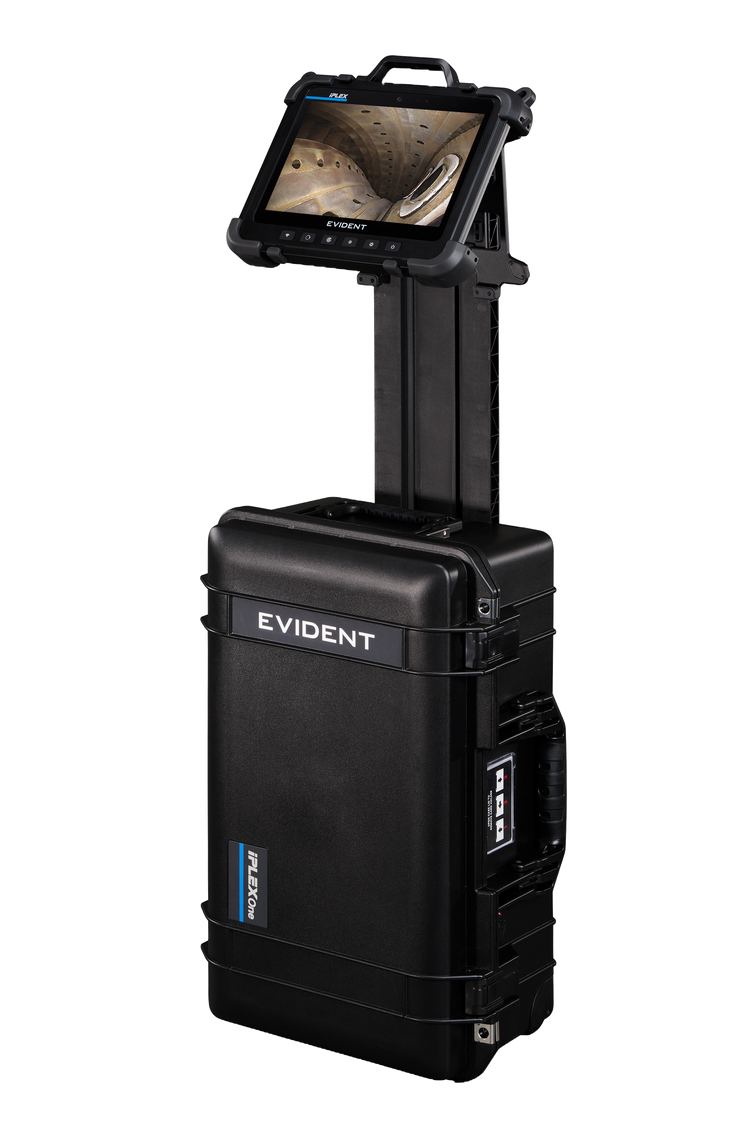

- Modular, cable-free setup: With wireless remote operation and modular components, IPLEX One adjusts to preferred user configuration without any physical constraints.
- Inspection-grade wireless: Ultra-low-latency peer-to-peer communication removes the need for tethered setups and enables more flexible workflows. Optional radio-disabled models for secure or classified environments.
- Remote-friendly control: Wireless control unit allows you to operate the scope from a distance, reducing strain and improving ergonomics in complex setups.
- Engineered for extreme weather: All-weather design withstands rain, snow, and extreme temperatures. AR-coated anti-reflection monitor with wide viewing angle allows operation under strong sunlight.
A Legacy of Rugged Reliability
IPLEX One absorbs impact, resists dirt and moisture, and performs through heavy vibration. It’s also made for long shift use, with ergonomic design and a 10-inch anti-reflective touchscreen.
- Proven in the real world: IPLEX One delivers when and where it matters most—drop-tested to MIL-STD standards, IP rated for dust and water, and validated by third-party testing.
- Reduced wear and tear: With a shorter distal end that enhances smooth insertion in tight areas, Swoptix technology reduces the risk of optical tips being stuck or damaged during inspection and reduces wear and tear on both optical tip adapters and the IPLEX One system as a whole.
- Global service and support: With a world-class service network behind every unit, IPLEX One comes with the training, maintenance, and expert help you need to stay mission-ready—no matter where or how you operate.
Software
ViSOL™ Visual Inspection Workflow Solution
A fully scalable cloud-based solution, ViSOL™ software helps IPLEX One users work even more efficiently, more insightfully, and more consistently. Intuitively organize, analyze, and report your RVI data with ViSOL’s advanced analytics, visualization, and collaboration tools.
3DAssist™ Software
Combine the IPLEX One’s optical tip adapters with 3DAssist™ software to enable advanced 3D modeling and dynamic comparative measurement. This powerful integration boosts RVI precision while reducing inspection time—dramatically enhancing overall inspection quality.
Specifications
SCOPE UNIT
| Model No. | IV10420 | IV10435 | IV10620 | IV10630 | IV10635 | IV10650 | IV10675 | IV106100 | |
| Insertion tube | Scope diameter | φ4.0 mm | φ6.0 mm | ||||||
| Scope length | 2.0 m (6.56 ft) | 3.5 m (11.48 ft) | 2.0 m (6.56 ft) | 3.0 m (9.84 ft) | 3.5 m (11.48 ft) | 5.0 m (16.40 ft) | 7.5 m (24.61 ft) | 10.0 m (32.81 ft) | |
| Exterior | High-durability tungsten braid | ||||||||
| Tube flexibility | Uniform stiffness | Tapered Flex insertion tube with flexibility that gradually increases toward the distal end | |||||||
| Gravity Indicator | - | Available | |||||||
| Optical system | Field of view | Selectable by optical adaptor | |||||||
| Direction of view | |||||||||
| Illumination | Laser Diode, White LED, Ultra Violet LED (365nm), Infrared LED (950nm) | ||||||||
| Articulation section | Articulation angle (all-way) | 160° | 180° | 150° | 130° | ||||
MAIN UNIT
| Model No. | IV10000, Operation unit | ||||||||
| Dimensions (W × H × D) | 305 mm × 220 mm × 154 mm (12.0 in. × 8.7in. × 6.1 in.) (protruding parts not included) | ||||||||
| Approx. system weight (main unit + operation unit) | When combined with IV10420: 6.40kg (14.1lb) | When combined with IV10435: 6.46kg (14.2lb) | When combined with IV10620: 6.48kg (14.3 lb) | When combined with IV10630: 6.56kg (14.5 lb) | When combined with IV10635: 6.60kg (14.6 lb) | When combined with IV10650: 6.72kg (14.8lb) | When combined with IV10675: 6.92kg (15.3lb) | When combined with IV106100: 7.12kg (15.7lb) | |
| LCD monitor | 10.1-inch WUXGA (1920 × 1200), IPS, High contrast Hard surface and multi-touch interface (10 point), capacitive Daylight readable display (Optical bonding + AR coating) 1100 NIT-backlight |
||||||||
| Video output | Type A HDMI 2.0 | ||||||||
| Headset (microphone in/ audio out) | Compatible with Bluetooth® headset/microphone | ||||||||
| Data I/O Ports | USB Type-C Port × 3 Port 1: USB 3.2 Gen.1, USB Power Delivery 3.0 (Input 20V/5A, Output 5V/3A) Port 2: USB 3.2 Gen.1, USB Power Delivery 3.0 (Input 20V/1.5A, Output 5V/0.9A) Port 3: USB 3.2 Gen.1, USB Power Delivery 3.0 (Input 20V/1.5A, Output 5V/0.9A) |
||||||||
| Power supply | Li-ion battery for Main Unit: 10.8 V nominal, approx. 360-minute operating time (Main Unit + Scope Unit) Li-ion battery for Tablet: 10.8 V nominal, approx. 180-minute operating time 100 V to 240 V, 50/60 Hz (with supplied AC adaptor) |
||||||||
| Recording media | Internal SSD (256 GB) or USB flash memory | ||||||||
| Title Text Options | 51-character display | ||||||||
| Image adjustment | Zoom function (digital seamless zoom up to 5 times), Gain (7-step), WiDER (5-step), Contrast (4-step), Dynamic Noise Reduction (3-step), Brightness (Gain Auto: 16-step, Gain Manual: 24-step), Sharpness (16-step), Saturation (21-step), Red Boost, Color Temperature (2000K~12000K, 21-step), Scene Preset, Advanced Setting, Image Display Functions | ||||||||
| Still image recording | Resolution | H960 × V752 (pixels)* *When Print Screen is on, the resolution becomes H1280 × V800 *Resolution is varied depends on optical adapter |
|||||||
| Recording format | JPEG (.JPG), PNG (.PNG) | ||||||||
| Video recording | Resolution | H960 × V752 (pixels)* *When Print Screen is on, the resolution becomes H1280 × V800 |
|||||||
| Recording format | MPEG 4 AVC/H.264 (.MP4 file) | ||||||||
| Wi-Fi | 2.4GHz (802.11 b/g/n/ax) x 2ch (Built into Operation unit） Wireless connectivity is available by connecting a compatible WiFii dongle to the IV10000 |
||||||||
| Bluetooth® | Bluetooth® 5.2 × 1(Built into Operation unit） Wireless connection with a remote control is supported |
||||||||
The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. Evident Corporation uses these trademarks and logos under license. All other trademarks and registered trademarks are the property of their respective owners.
OPTICAL ADAPTOR SPECIFICATIONS
| φ4.0 mm Optical Adaptors | ||||||||
| AT80D/FF-IV104 | AT120D/NF-IV104 | AT120D/FF-IV104 | AT120S/NF-IV104 | AT120S/FF-IV104 | AT80D/80D-IV104 | AT60S/60S-IV104 | ||
| Optical system | Field of view | 80° | 120° | 120° | 120° | 120° | 80°/80° | 60°/60° |
| Direction of view | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 40 mm to inf | 3 to 300 mm | 17 mm to inf | 2 to 40 mm | 8 mm to inf | 4 to 280 mm | 3 to 250 mm | |
| Distal end | Outer diameter*2 | φ4.0 mm | φ4.0 mm | φ4.0 mm | φ4.0 mm | φ4.0 mm | φ4.0 mm | φ4.0 mm |
| Distal end*3 | 20.9 mm | 20.4 mm | 20.5 mm | 21.1 mm | 21.1 mm | 22.3 mm | 24.7 mm | |
| φ4.0 mm Swoptix 3D Measurement | φ4.0 mm Swoptix Multiview | ||||||
| AT100DD-IV104 | AT80SS-IV104 | AT110DN/F-IV104 | AT100D/S-IV104 | ||||
| Optical system | Field of view | 100° | 80° | 120°/110° | 100° | ||
| Direction of view | Forward | Side | Forward | Forward | Side | ||
| Depth of field*1 | 4 to 150 mm | 4 to 150 mm | 3 to 25 mm | 20 mm to inf | 6 mm to inf | 5 mm to inf | |
| Distal end | Outer diameter*2 | φ4.0 mm | φ4.0 mm | φ4.0 mm | φ4.0 mm | ||
| Distal end*3 | 21.0 mm | 23.2 mm | 20.9 mm | 22.4 mm | |||
| φ6.0 mm Optical Adaptors | ||||||||
| AT80D/FF-IV106 | AT120D/NF-IV106 | AT120D/FF-IV106 | AT120S/NF-IV106 | AT120S/FF-IV106 | AT90D/90D-IV106 | AT70S/70S-IV106 | ||
| Optical system | Field of view | 80° | 120° | 120° | 120° | 120° | 90°/90° | 70°/70° |
| Direction of view | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 18 mm to inf | 5 to 330 mm | 17 mm to inf | 2 to 50 mm | 8 mm to inf | 4 to 280 mm | 3 to 250 mm | |
| Distal end | Outer diameter*2 | φ6.0 mm | φ6.0 mm | φ6.0 mm | φ6.0 mm | φ6.0 mm | φ6.0 mm | φ6.0 mm |
| Distal end*3 | 20.8 mm | 20.9 mm | 20.5 mm | 21.6 mm | 21.6 mm | 22.7 mm | 26.7 mm | |
| φ6.0 mm Swoptix 3D Measurement | φ6.0 mmSwoptix Multiview | ||||||
| AT120DD-IV106 | AT100SS-IV106 | AT110DN/F-IV106 | AT100D/S-IV106 | ||||
| Optical system | Field of view | 120° | 100° | 120°/110° | 100° | ||
| Direction of view | Forward | Side | Forward | Forward | Side | ||
| Depth of field*1 | 4 to 150 mm | 3 mm to 150 | 3 to 25 mm | 20 mm to inf | 6 mm to inf | 5 mm to inf | |
| Distal end | Outer diameter*2 | φ6.0 mm | φ6.0 mm | φ6.0 mm | φ6.0 mm | ||
| Distal end*3 | 21.6 mm | 25.0 mm | 20.6 mm | 22.3 mm | |||
*1. Indicates the viewing distance with optimal focus.
*2. The adaptor can be inserted into a ø4.0 mm and ø6.0 mm hole when it is mounted on the scope.
*3. Indicates the length of the rigid portion at the scope’s distal end when mounted.
OPERATING ENVIRONMENT
| Operating temperature | Insertion tube | In air: -25 °C to 100 ℃ (-13 °F to 212 °F) |
| In water: 10 °C to 30℃ (50 °F to 86 °F) | ||
| Tablet | In air: -21 °C to 49℃ (-5.8 °F to 120.2 °F) (with Li-ion battery) | |
| In air: 0 °C to 40 ℃ (32 °F to 104 °F) (with AC power adaptor) | ||
| System | In air: -21 °C to 49℃ (-5.8 °F to 120.2 °F) (with Li-ion battery) | |
| In air: 0 °C to 40 ℃ (32 °F to 104 °F) (with AC power adaptor) | ||
| Relative humidity | All parts | 15 to 90% |
| Liquid resistance | All parts | Operable when exposed to machine oil, light oil, or 5 % saline solution |
| Waterproofing | Insertion tube | Operable under water with viewing tip adaptor attached Not operable underwater with stereo measurement tip adaptors IV104 series: Up to an equivalent to 3.5 m (11.6 ft) deep, IV106 series: Up to an equivalent to 10.0 m (33.0 ft) deep |
| Other parts | IP65* *It does not apply when the protective covers on the system are open. |
MIL-STD COMPLIANCE
The operating environment performance is confirmed by the following MIL-STD-810H and MIL-STD-461G.
No warranty is given as to damage-free under any conditions. Please ask Evident sales representative for details.
| Type | Method |
| Low atmosphere | MIL-STD-810H, Method 500.6 Procedure I |
| High temperature | MIL-STD-810H, Method 501.7 Procedure I |
| Cold temperature | MIL-STD-810H, Method 502.7 Procedure I |
| Rain and Blowing rain | MIL-STD-810H, Method 506.6 Procedure I |
| Humidity | MIL-STD-810H, Method 507.6 |
| Salt Fog / Corrosive Environments | MIL-STD-810H, Method 509.8 |
| Blowing dust | MIL-STD-810H, Method 510.7 Procedure I |
| Explosive Atmosphere | MIL-STD-810H, Method 511.7 Procedure I |
| Vibration | MIL-STD-810H, Method 514.8 Procedure I |
| Shock | MIL-STD-810H, Method 516.8 Procedure IV |
| Icing/Freezing Rain | MIL-STD-810H, Method 521.4 |
| Conducted Susceptibility, Power Leads | MIL-STD-461G, CS101 (System) |
| Conducted Susceptibility, Bulk Cable Injection | MIL-STD-461G, CS114 (System) |
| Conducted Susceptibility, Bulk Cable Injection, Impuls | MIL-STD-461G, CS115 (System) |
| Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | MIL-STD-461G, CS116 (System) |
| Conducted Susceptibility, Personnel Borne Electrostatic Discharge (ESD) | MIL-STD-461G, CS118 (System and Wireless Remote) |
| Radiated emission Magnetic Field | MIL-STD-461G, RE101 (System and Wireless Remote) |
| Radiated emission Electric Field | MIL-STD-461G, RE102 Above Deck (System and Wireless Remote) |
| Radiated susceptibility Magnetic Field | MIL-STD-461G, RS101 (System and Wireless Remote) |
| Radiated Susceptibility Electric Field | MIL-STD-461G, RS103 Above Deck (System and Wireless Remote) |
*IPLEX One is manufactured by Evident Corporation.
