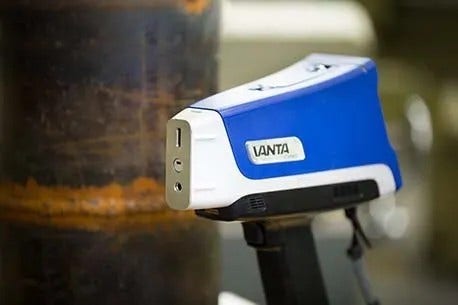

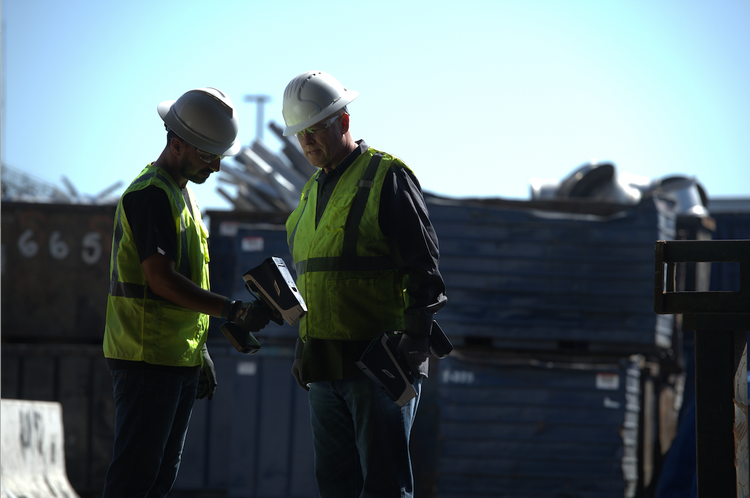

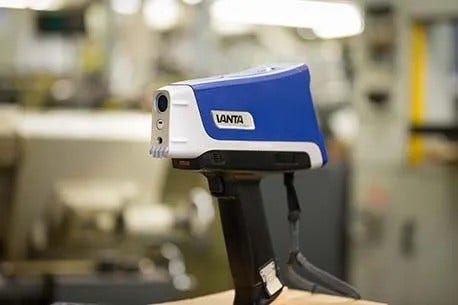

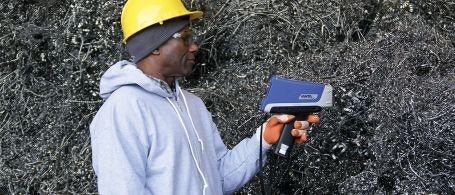

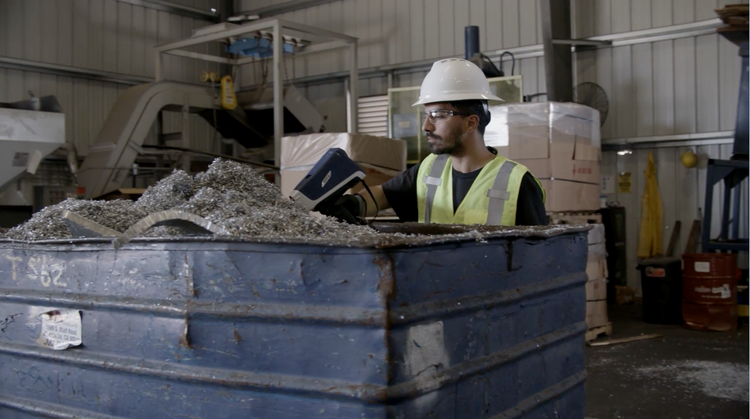

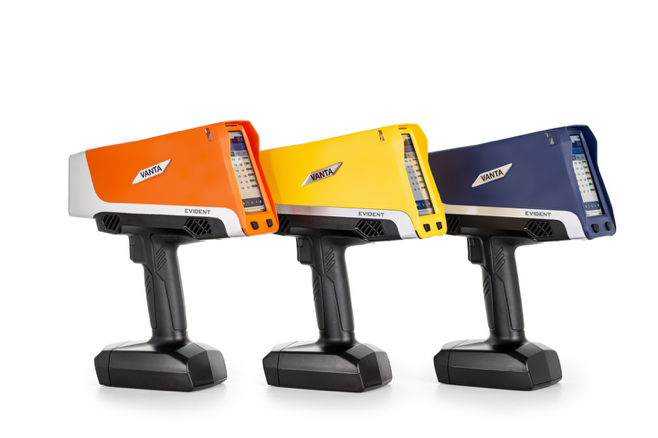

Vanta for Scrap Recycling

혁신성

Vanta 분석기는 첫 번째부터 100번째 테스트까지 매번 동일하게 정확한 결과를 제시합니다.

Vanta 시리즈의 독점 Axon^™ 기술은 초저잡음 전자공학(ultra-low-noise electronics) 을 활용하여 초당 X선 카운트를 높이므로 빠르고 정확하며 반복 가능한 결과를 얻을 수 있습니다.

Axon 기술을 활용하는 각 장치는 몇 초만에 합금 화학 및 등급 ID를 정확하게 수행하여 빠른 답을 제공하고 생산성을 향상합니다.

Software features that deliver fast ROI

Vanta^™ analyzers for scrap sorting have innovative software features that are optimized for scrap sorting to maximize the analyzer’s already outstanding capabilities.

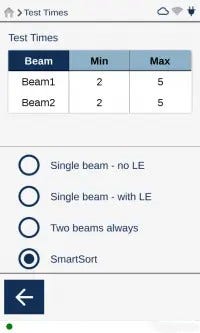

SmartSort automatically extends or shorten test times to save time and provide the best possible match for aluminum grades. With SmartSort, both new and experienced employees get the same right answer fast:

With SmartSort, Vanta analyzers:

• Provide aluminum grade results in as little as 1 second.
• Automatically lengthen or shorten test times based on material to save time.
• Knows when to extend testing to find aluminum in red metals or nickel grades.

Grade Match Messaging

Grade Match Messaging provides real-time and/or pop-up message sorting instructions for fast decision making.

• Real-time and/or pop-up messages with familiar trade or grade names or special handling instructions.
• Increase efficiency and throughput.
• Reduce user training.
• Streamline the sorting process by minimizing user decision-making.

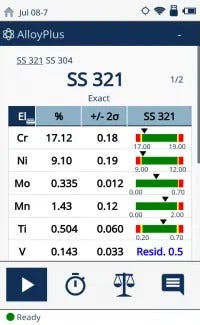

Easy Grade Comparison

Compare close grades side-by-side to know which alloy is the best match with nominal and residual values.

• Automatically identify the likely presence of elements invisible to XRF based on grade specifications.
• Identify the presence of contaminant/residual elements in recycled metals that can compromise its value and/or downstream processing requirements.
• Set a maximum tolerated concentration for residual elements in grade families.
• Flag trace level contaminants without compromising or delaying fast, accurate, and conclusive grade matches.

Send data the cloud for greater productivity

Vanta analyzers make data archiving easy.

The Vanta software was created with scrap users in mind to improve productivity for fast sorting and return on investment:

• Easy-to-use touch screen software interface.
• Configurable UI.
• Push-button joystick for use with gloved hands.
• Integrated camera and a small spot collimator for detailed analysis of small pieces.

https://adobeassets.evidentscientific.com/content/dam/video/videolibrary/videos/VANTA_WORKSTATION_SUBTITLEMASTER_rev2(2)_480.mp4

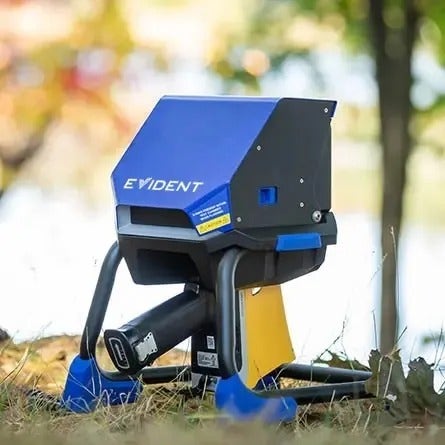

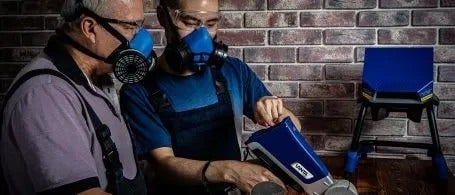

Vanta Work Station

The portable Vanta Work Station is battery operated for testing on the go. A fully interlocked lid and 360-degree shielding make it convenient for bagged, prepped, and liquid samples or small objects, including jewelry and circuit boards. In this closed-beam setup, users operate the analyzer using Vanta PC software or the Vanta mobile app.

The portable Vanta Work Station is effective for a variety of applications:

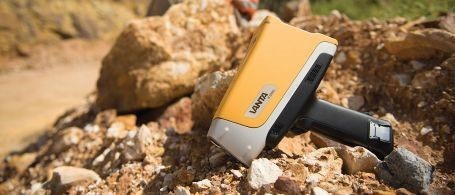

• Geo exploration
• Mining process control
• RoHS/consumer products
• Environmental analysis

The Work Station’s stable platform enables longer test times. It gives you the freedom to start a test in the Work Station and complete other tasks while the Vanta instrument performs the analysis. You can be confident that the sample is stable and its position is reproducible, helping ensure high-quality data and efficient sample throughput.

Easy to Use

• Simply click the Vanta analyzer into place, and release it with the press of a button
• Balanced lid system to prevent slamming
• Easy sample placement—no front wall or lip obstruction
• Control the Vanta analyzer and transfer data wirelessly or via a USB cable

Portable

• Battery or AC powered for benchtop or field use
• Easy to transport and set up
• Chamber and legs separate for easy storage
• Optional carrying case

Designed for Safety

• Fully shielded and interlocked chamber: 107 mm × 178 mm × 179 mm (4.2 in. × 7 in. × 7 in.)
• Radiation warning LEDs are large, clear, and prominent

Small Footprint

• 36.6 mm × 33 mm (14.4 in. × 13 in.)

Learn more about this accessory:

Watch the Video

Vanta Probe Shield

The Probe Shield provides additional shielding from backscattered radiation from testing low-density samples. This accessory provides an increased measure of protection by reducing the X-ray backscatter in the direction of the user during a test.

Learn how to install the Weld Mask:

Watch the Video

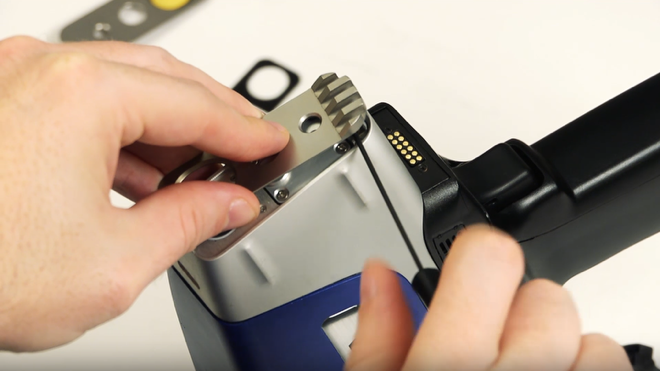

Vanta Weld Mask

The Weld Mask prevents interference from the base metal when analyzing weld beads. This accessory replaces the Vanta analyzer’s faceplate and collimates the beam to a 3 mm wide slot for rapid analysis of weld beads.

Learn more about weld analysis with Vanta Handheld XRF:

Watch the Video
