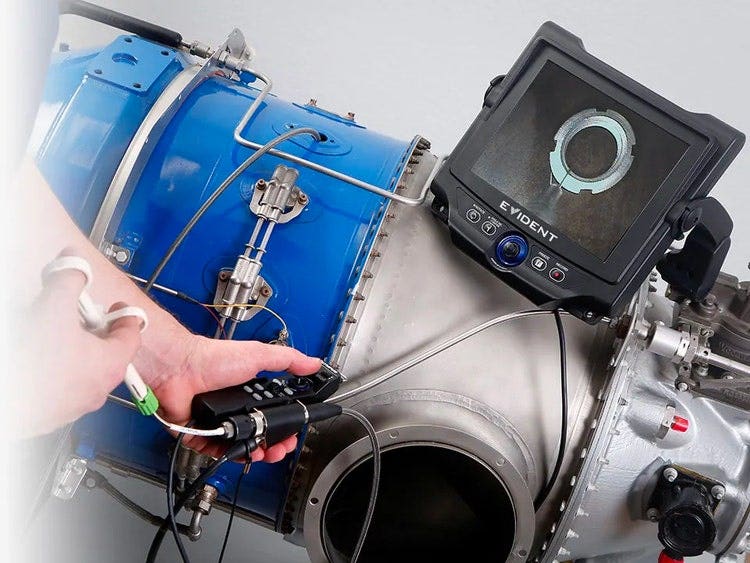

IPLEX NX 비디오스코프
IPLEX NX 비디오스코프는 최고 품질의 이미지와 직관적인 사용자 인터페이스, 인체 공학적 설계 및 내구성을 결합하여 거의 모든 환경에서 효율적인 검사를 제공합니다. 선명하고 밝은 이미지와 강력한 측정 기능은 기대를 뛰어 넘도록 제작되었습니다.
IPLEX-NX
개요
Measure with Confidence Using 3D Modeling
Choosing the right measurement point is now even easier.
3D modeling enables you to see the details of what you’re inspecting from multiple angles, making it easier to specify the exact location of your measurement points.
- 영상 검사
- 비디오 내시경

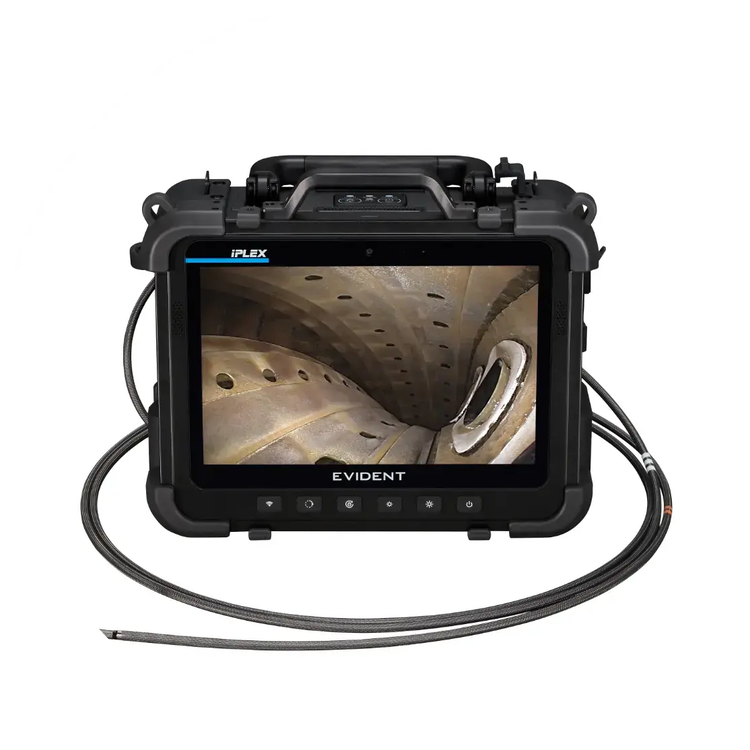

One의 힘을 경험하세요
IPLEX™ One 비디오 내시경 솔루션
IPLEX 비디오 내시경 시스템의 10세대인 IPLEX One은 통합된 소프트웨어 기반 플랫폼으로, 더 빠르게 작업하고, 더 잘 보고, 앞서 나갈 수 있도록 지원합니다. 획기적인 Swoptix 3D 측정 기술과 영상 및 분석 기능 업그레이드, 모듈형 확장성을 결합한 IPLEX One은 원격 시각 검사의 가능성을 새롭게 정의합니다.
Instantly ConfirmMeasurement Objects
- 3D modeling enables you to clearly see the shape and complexity of your target
- Precisely designate your measurement points for faster inspections
- Choose the right points the first time to minimize the need to re-measure
Set Reference LinesWhere You Want Them
- 3D images facilitate reliable reference lines on difficult components, such as the edge of a turbine blade
- Reduce the chance of misalignment
Make ConfidentDepth Measurements
- Confirming the reference plane is intuitive
- Specify your measurement points with confidence for reliable depth measurements
Our Highest Quality Images
The IPLEX NX video borescope delivers crisp, high-resolution images.
Its reliable image quality increases your probability of detection, helping you make clear decisions
and maintain crucial systems.

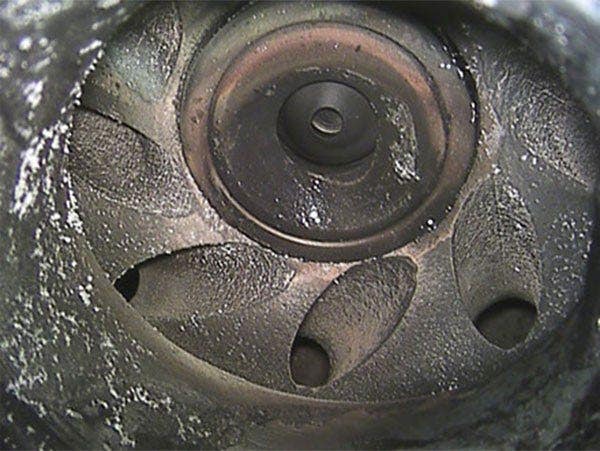

See Clearly
Exceptional image clarity enables you to see tiny defects in stunning detail.

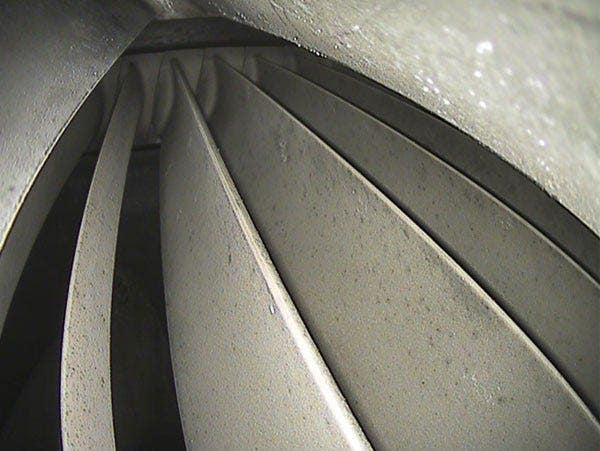

See More
Laser diode illumination system is up to 4 times brighter than conventional video borescopes.
Expanded Measurement Capabilities
Easy-to-use advanced stereo measurement offers expanded coverage for fast, efficient inspections.
See theBig Picture
- Super wide stereo measurement increases the measurable area by 4x* as compared to a conventional model
- Easily measure the distance of a crack in a combustion chamber or a defect in the blade root
*When contrasted with a conventional 6.0 mm diameter scope with a direct viewing stereo optical adaptor.
Convenient Scalar Measurement
- Simply define a reference line to use scalar measurement without changing the tip adaptor
Real-time Measurement withMulti Spot-Ranging
- The unique Multi Spot-Ranging function enables real-time measurement of the distance from the scope tip to multiple points on the inspection surface
- Get real-time surface shape information without stopping the inspection
Large Touch-Screen Monitor
Vivid touch-screen delivers clear, bright images for excellent visibility in a range of lighting conditions.
검사 효율
효율적인 검사
IPLEX NX는 사용이 간편하고 사용 편리성이 뛰어납니다.
장시간 검사시 산업내시경의 간편한 조작성은 작업을 더 쉽게 할 수 있도록 도와줍니다.
멀티-포지션 디자인
- 여섯 가지 방식으로 사용자의 편리함을 극대화 할 수 있습니다.
- 최대한의 가시성을 확보하여 모니터를 배치할 수 있습니다.
또한 본체에서 분리할 수도 있습니다. - 옵션 사항인 리모트 컨트롤러를 통해 간편한 조작이 가능합니다.
내장형 채널 스코프
내장형 채널 스코프는 일반 스코프와 기능상으로 유사하지만 추가적으로 외부 이물질(FOD)을 찾고 제거하는 데 유용합니다. 필요할 때마다 쉽게 사용 가능한 내장형 채널 스코프를 추가하여 항공기 엔진 검사를 용이하게 수행할 수 있습니다.
6.2mm(0.24인치) 외경의 교환 가능한 내장형 채널 스코프
이물질 제거용 툴
여섯 종류의 이물질 제거용 툴을 사용하면 이물질을 제거하고 항공기 엔진에서 후크 앤드 드래그 검사를 수행할 수 있습니다.
Alligator
Grasper
Basket
Magnet
Snare
Hook

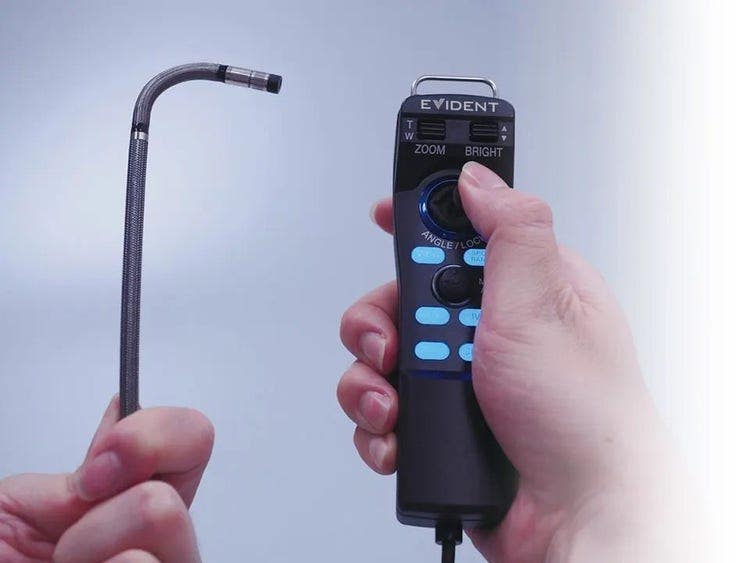

뛰어난 TrueFeel 만곡
- 빠르고 반응성이 뛰어난 관절
- 피로를 줄이는 데 도움이 되는 가볍고 편안한 작동으로 스코프를 쉽게 제어할 수 있습니다.

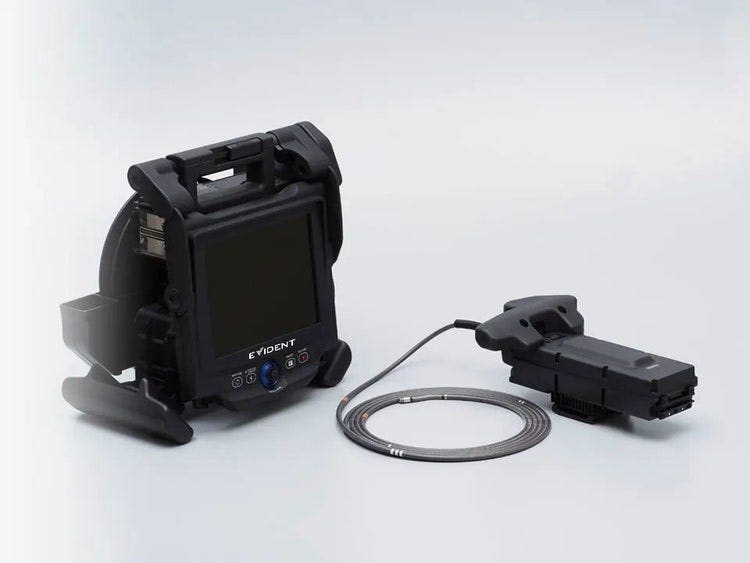

여러 작업에 사용 가능한 교환식 내시경
- 작업에 적합한 내시경을 선택하십시오.
- 길이 3.5m(11.5피트)-7.5m(24.6피트)의 6.0mm 내시경 및 길이 3.5m(11.5피트)-5m(16피트)의 4.0mm 내시경
실시간 이미지와 저장된 이미지 비교
- 고스트 이미지 기능을 통해 산업내시경에 저장된 이미지와 실시간 이미지를 비교하여 과거와 현재 조건을 대조해볼 수 있습니다.
- 시간 경과에 따른 구성품 변화를 모니터링합니다.
기타 기능
- 보다 선명한 이미지 획득을 위한 노이즈 감소(NR) 알고리즘 컨트롤
- 내구성이 뛰어난 Tapered Flex 스코프 유닛
- 만곡 속도 미세 조정
- InHelp 검사 지원 소프트웨어
- 저장 이미지 공유(옵션 사항)
사양
SCOPE UNIT
| Model No. | IV9435N | IV9450N | IV9635N | IV9650N | IV9675N | IV9635X1N | |
| Insertion tube | Scope diameter | Φ4.0 mm | Φ6.0 mm | ø6.2 mm | |||
| Scope length | 3.5 m | 5.0 m | 3.5 m | 5.0 m | 7.5 m | 3.5 m | |
| Exterior | High - durability tungsten braid | ||||||
| Tube flexibility | Uniform stiffness | TaperedFlex tube with flexibility gradually increasing toward the distal end |
|||||
| Optical system | Field of view | Selectable by optical adaptor. Adaptor for Stereo measurement attachable | |||||
| Direction of view | |||||||
| Illumination | High - intensity laser diode | ||||||
| Articulation section | Articulation angle Up/Down/Right/Left |
130° | 180° | 150° | 130° | ||
| Articulation operation | 128 mm × 203 mm × 110 mm (4.9 in. × 8 in. × 4.3 in.) | ||||||
BASE UNIT
| Model No | IV9000N | ||||||
| Dimensions (W x H x D) | 320 mm x 310 mm x 180 mm | ||||||
| Approx. system weight (with battery and SDHC card) |
7.1 kg | 7.2 kg | 7.3 kg | 7.4 kg | 7.6 kg | 7.5 kg | |
| LCD monitor | 8.4-inch daylight-view, touch screen LCD, clear type | ||||||
| Input/Output terminal | Input terminal | S-Video | |||||
| Output terminal | VGA | ||||||
| USB connector | Type A connector, Version 2.0 standards | ||||||
| Power supply | Battery: 14.8 V nominal, approx. 100-minute operating time. AC power: 100 V to 240 V, 50/60 Hz (with supplied AC adaptor) |
||||||
| Recording media | SDHC card and USB flash memory(Still image recording only) | ||||||
| Still image recording | Resolution | H768 x V576 (Pixel) | H1024 x V768 (Pixel) | H768 x V576 (Pixel) | |||
| Recording format | Compressed JPEG format | ||||||
| Video recording | Resolution | H768 x V576 (Pixel) | H1024 x V768 (Pixel) | H768 x V576 (Pixel) | |||
| Recording format | MPEG-4 AVC (H.264) format, Windows Media Player compatible | ||||||
| Stereo measurement | Distance | Distance between two points | |||||
| Point-to-line | Perpendicular distance between a point and a user-defined line | ||||||
| Depth | Orthogonal depth/height distance between a point and a user-defined plane | ||||||
| Area/Lines | Multiple point circumference and area measurement | ||||||
| 3D Modeling | Live cross section, X/Y/Z-axis rotation, 2x Color mapping mode | ||||||
| Scalar measurement | Distance between two points based on a known measurement in the same plane | ||||||
----
OPTICAL ADAPTOR SPECIFICATIONS
ø4.0 mm Optical Adaptors
| AT80D/FF-IV94N | AT120D/NF-IV94N | AT120D/FF-IV94N | AT100S/NF-IV94N | AT100S/FF-IV94N | AT70D/70D-IV94N | AT50S/50S-IV94N | ||
| Optical system | Field of view | 80° | 120° | 120° | 100° | 100° | 70°/70° | 50°/50° |
| Direction of view | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 35 to ∞ mm | 2 to 200 mm | 17 to ∞ mm | 2 to 15 mm | 8 to ∞ mm | 5 to 200 mm | 3 to 150 mm | |
| Distal end | Outer diameter*2 | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm | ø4.0 mm |
| Distal end*3 | 20.1 mm | 20.2 mm | 20.1 mm | 22.9 mm | 22.9 mm | 22.3 mm | 26.7 mm | |
ø6.0 mm Optical Adaptors
| AT50D/FF-IV96N | AT80D/FF-IV96N | AT120D/NF-IV96N | AT120D/FF-IV96N | AT120S/NF-IV96N | AT120S/FF-IV96N | AT90D/90D-IV96N | AT70S/70S-IV96N | ||
| Optical system | Field of view | 50° | 80° | 120° | 120° | 120° | 120° | 90°/90° | 70°/70° |
| Direction of view | Forward | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 50 to ∞ mm | 20 to ∞ mm | 7 to 300 mm | 19 to ∞ mm | 4 to 150 mm | 20 to ∞ mm | 5 to 250 mm | 4 to 250 mm | |
| Distal end | Outer diameter*2 | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm | ø6.0 mm |
| Distal end*3 | 21.3 mm | 21.3 mm | 21.4 mm | 21.4 mm | 26.6 mm | 26.6 mm | 25 mm | 31.2 mm | |
ø6.2 mm Optical Adaptors
| AT80D-IV96X1N | AT120D/NF-IV96X1N | AT120D/FF-IV96X1N | AT80S-IV96X1N | AT120S-IV96X1N | AT70D/70D-IV96X1N | AT60S/60S-IV96X1N | ||
| Optical system | Field of view | 80° | 120° | 120° | 80° | 120° | 70°/70° | 60°/60° |
| Direction of view | Forward | Forward | Forward | Side | Side | Forward | Side | |
| Depth of field*1 | 35 to ∞ mm | 2 to 200 mm | 17 to ∞ mm | 30 to ∞ mm | 8 to ∞ mm | 5 to 200 mm | 3 to 150 mm | |
| Distal end | Outer diameter*2 | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm | ø6.2 mm |
| Distal end*3 | 20.6 mm | 20.6 mm | 20.6 mm | 24.4 mm | 24.4 mm | 22.7 mm | 28.3 mm | |
*1. Indicates the viewing distance with optimal focus.
*2. The adaptor can be inserted into a ø4.0 mm, ø6.0 mm and ø6.2 mm hole when it is mounted on the scope.
*3. Indicates the length of the rigid portion at the scope’s distal end when mounted.
OPERATING ENVIRONMENT
| Operating temperature | Insertion tube | In air : -25 to 100 ℃ In water : 10 to 30 ℃ |
| Other parts | In air : -21 to 49 ℃ (with battery) In air : 0 to 40 ℃ (with AC power adaptor) |
|
| In air: 0 ℃ to 40 ℃ (32 °F to 104 °F) (with AC power adapter and charged battery) | ||
| Relative humidity | All parts | 15 to 90% |
| Liquid resistance | All parts | Operable when exposed to machine oil, light oil or 5 % saline solution |
| Dust proofing and waterproofing | Insertion tube | Operable under water with viewing tip adaptor attached Not operable underwater with stereo measurement tip adaptors IV94 series — Up to an equivalent to 5.0 m(16.5 ft) in depth. IV96 series — Up to an equivalent to 7.5 m (24.6 ft) in depth |
| Other parts | Operable in blowing rain conditions (battery compartment must be closed). Not operable under water |
MIL-STD COMPLIANCE
The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461F/G.
No warranty is given as to damage-free under any conditions. Please ask Evident sales representative for details.

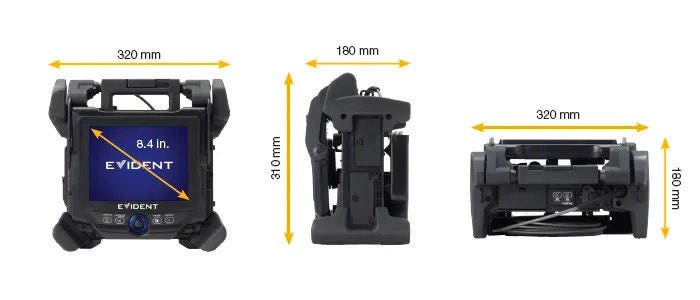

DIMENSIONS
