iPLEX G Lite Video Borescope
The IPLEX G Lite industrial videoscope packs powerful imaging capabilities into a small, rugged body. Lightweight and able to go almost anywhere, users working in challenging applications have a remote visual inspection tool with the image quality and ease of use to get the job done.
If you’re inspecting in the cramped quarters of a wind tower nacelle, the wind version of the IPLEX G Lite videoscope’s combination of portability and powerful imaging features can make your job easier.
IPLEX G Lite/G Lite-W

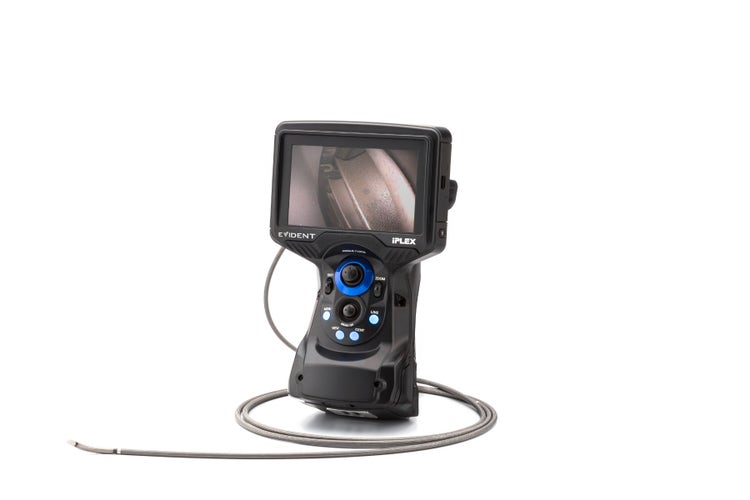

IPLEX G Lite Compact Video Borescope
The Portable, Powerful Video Borescope
For challenging inspections that require a small-diameter borescope, the IPLEX G Lite portable borescope packs powerful imaging capabilities into a small, rugged body. Lightweight and able to go almost anywhere, this remote visual inspection tool equips users with the image quality and ease of use to get the job done.
- Visual Inspection
- Video Borescopes
Unleash the Power of One
IPLEX™ One Videoscope Solution
The 10th generation of the IPLEX videoscope system, IPLEX One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead. Combining groundbreaking Swoptix 3D measurement technology with viewing and analysis upgrades and modular scalability, IPLEX One redefines what’s possible in remote visual inspection.
IPLEX G Lite-W Portable Video Borescope for Wind Energy
Better Wind Turbine Inspection
If you’re inspecting in the cramped quarters of a wind tower nacelle, the wind version of the IPLEX G Lite video borescope packs portability and powerful imaging features into a small body to make your job easier.
Go Anywhere

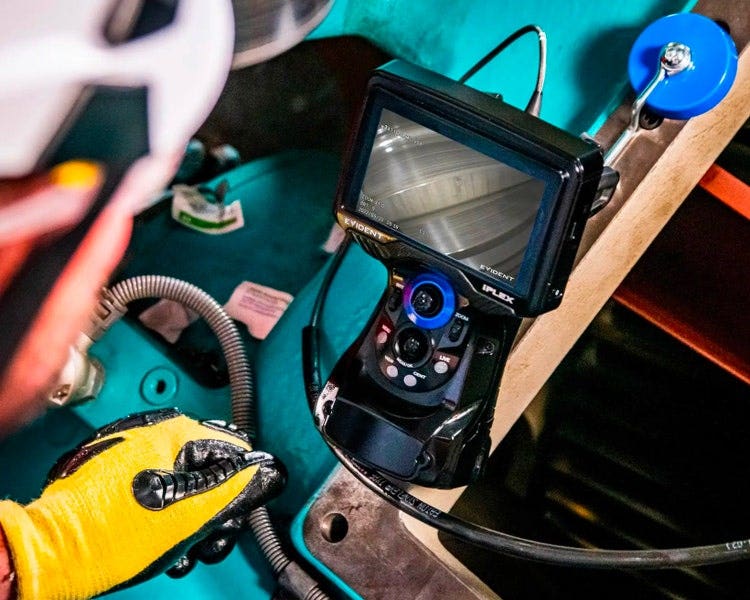

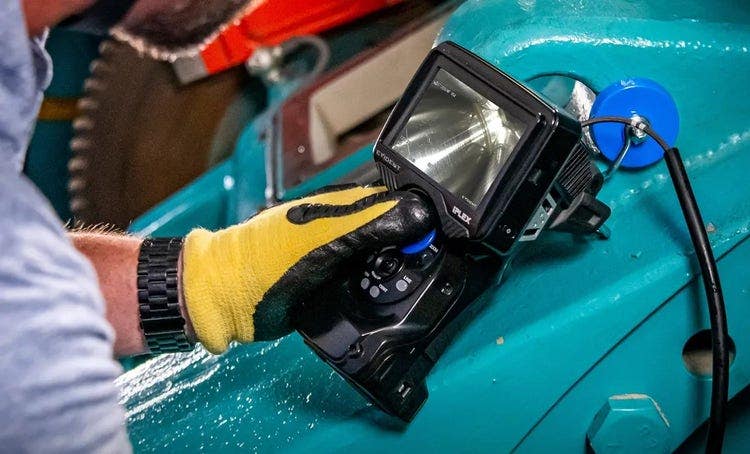

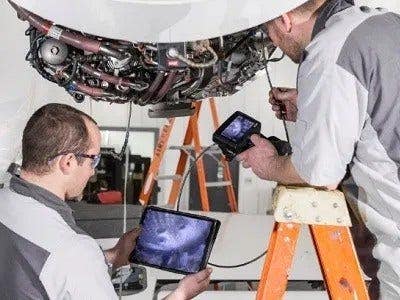

The ergonomically designed, portable video borescope can be carried to almost any job site and used comfortably.
- Lightweight: The IPLEX G Lite video borescope weighs only 1.15 kg (2.5 lb), and the IPLEX G Lite-W video borescope weighs only 1.16 kg (2.6 lb)

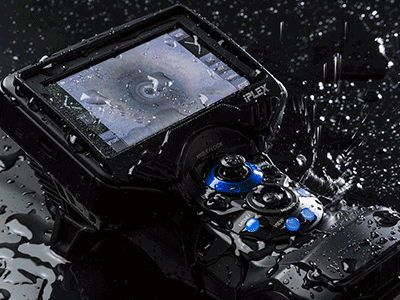

- Durable: Small but tough, the IPLEX G Lite/IPLEX G Lite-W video borescope is designed to meet IP65 standards and built to pass U.S. Department of Defense testing (MIL-STD)
- Choose the right scope for the job: Select from scopes measuring 2 m and 3.5 m long (4 mm/6 mm) and 10 m long (6 mm only)
- Made to travel: The compact video borescope and its accessories fit neatly in a lightweight travel case small enough to fit under an airplane seat
True to Your Image

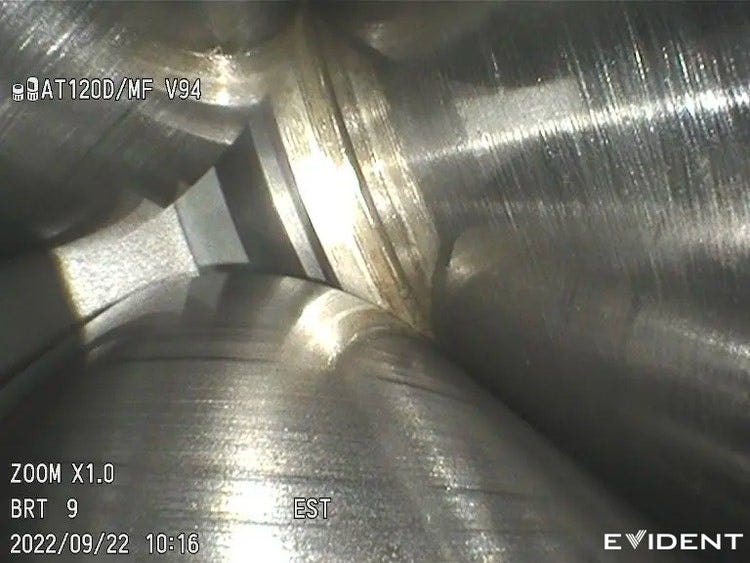

If you’re tired of sacrificing portability for high-quality images, stop. The IPLEX G Lite and IPLEX G Lite-W portable video borescopes pack many of the imaging features found on our larger video borescopes into a small, highly portable instrument.

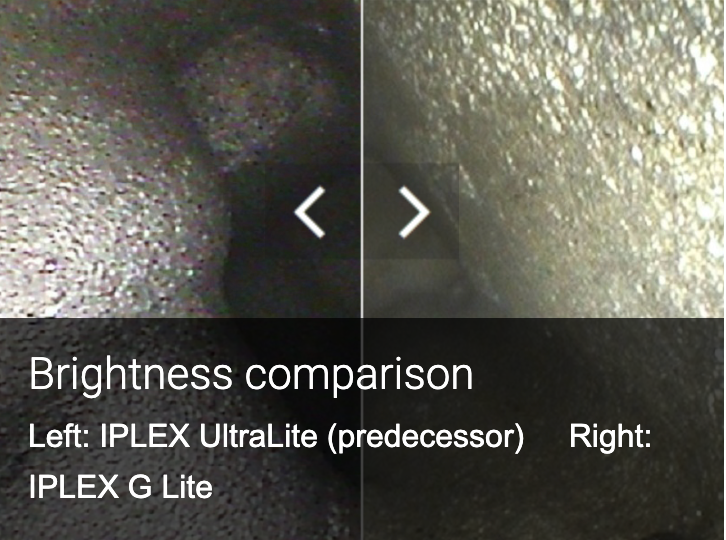

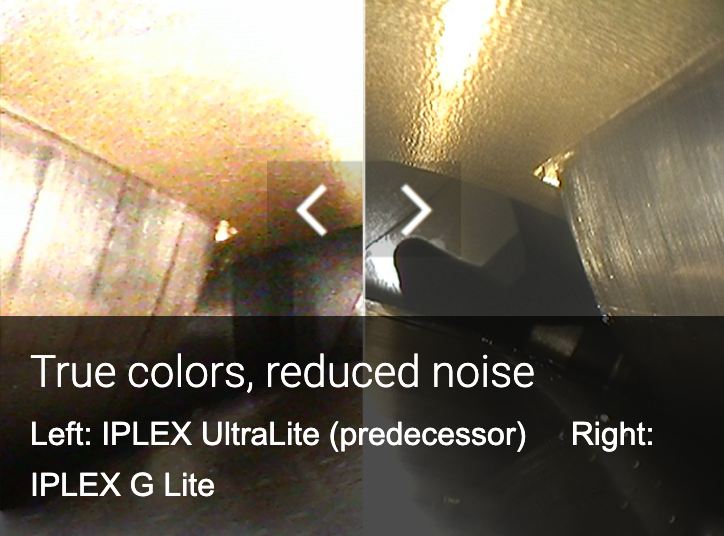

- Bright illumination, reduced noise: The LED light source is twice as bright as the one on the predecessor model (IPLEX UltraLite); along with the new noise reduction algorithm, the compact video borescope helps you locate problems and defects in dark areas
- 60 frames per second (fps) video: Capture smooth videos with the video borescope’s high frame rate; if you are recording a moving object, you can obtain clear videos with no stutter

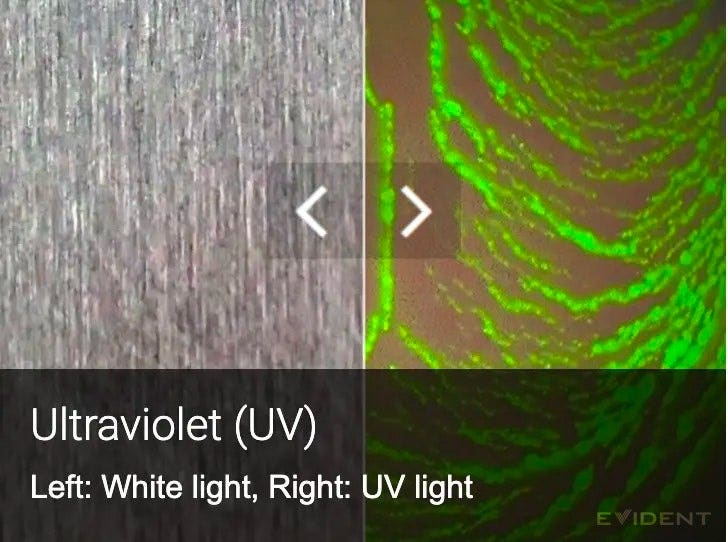

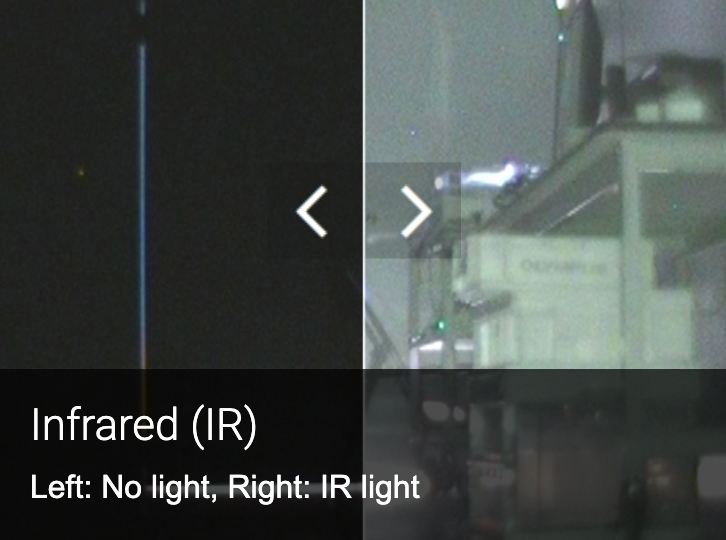

- Flexible UV and IR lighting options: Detect invisible hairline cracks using ultraviolet (UV) illumination, and view objects in dark area using infrared (IR) illumination; the interchangeable LED light source expands the capabilities of the video borescope*
- Powerful measurement at the touch of your finger: The compact video borescope is equipped with scalar measurement as a standard feature, enabling you to size objects using a reference defect; for more advanced functionality, upgrade to the stereo measurement option to size objects using precise three-dimensional coordinates
*IPLEX G Lite only
Fast and Easy
The small-diameter video borescope combines ergonomics and ruggedness with thoughtful features that help make your inspections fast and efficient.
- Responsive joystick, precise movements: Responsive TrueFeel articulation enables you to control the scope’s tip with precise movement so that you can navigate to your target area quickly
- Record still images and video simultaneously: With the push of a button, you can capture still images while recording a video
- Bookmark: Add bookmarks to save time during video reviews and find critical moments quickly
- Constant video: Never lose critical inspection recordings; the small video borescope automatically records the last 30 minutes of your inspection even if you forget to press the record button
- Stream inspection images: By using the recommended USB wireless LAN adapter, images can be shared with colleagues using a tablet during the inspection; this makes it easier to diagnose problems with the help of other inspectors
- Easily share data: Send saved images and videos to your PC wirelessly using the IPLEX desktop app for secure file transfer
Better Wind Turbine Inspection
The IPLEX G Lite-W video borescope, the wind version of the IPLEX G Lite has features designed specifically for wind tower inspection, such as:
- A sealed, oil-clearing tip adapter to see more clearly in oily environments
- Optics designed for wind tower gearbox inspections
- 4 mm scope to fit into tight spaces
- Bright LED guide tube *
- Oil-resistant insertion tube coating, making it easy to clean
*Optional
Finish Inspections Faster
The compact video borescope has a sealed, oil-clearing tip adapter that enables you to see more clearly in oily environments, like a gearbox. The sealed tip keeps oil from penetrating into the adapter, while the channels on the oil-clearing tip use capillary action to draw oil away from the lens. Now you can spend less time removing the scope to clean oil off the tip for faster inspections.
Designed to meet IP65 standards and built to pass U.S. Department of Defense testing (MIL-STD), the IPLEX G Lite-W small-diameter video borescope is up to the challenge of working at height in a wind tower nacelle for maximum uptime. The insertion tube’s durable articulation mechanism helps protect the scope when inserting it in tight spaces where it can be easily damaged.
Tailored for Wind Turbine Inspections

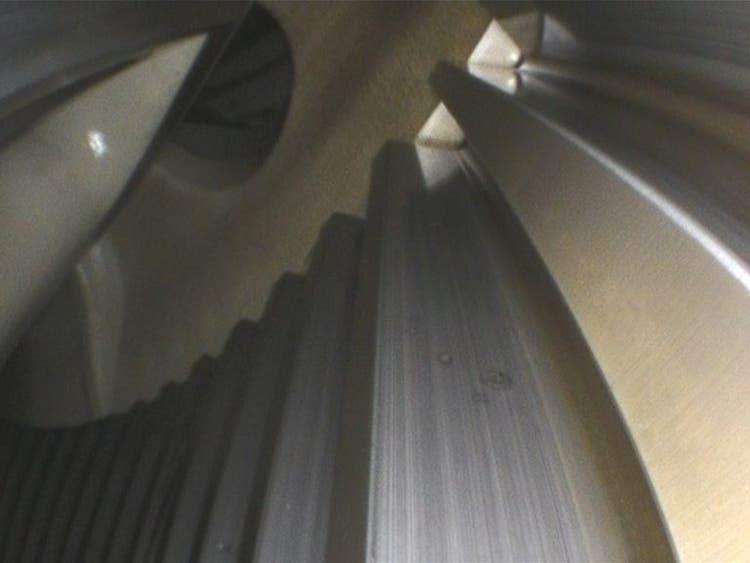

The IPLEX G Lite-W video borescope has specially designed optics that balance the need to view areas of the wind turbine up close, such as bearings and gear teeth, and look for defects in large spaces—all while being small enough to fit into the space between the turbine’s bearings to look for damage.

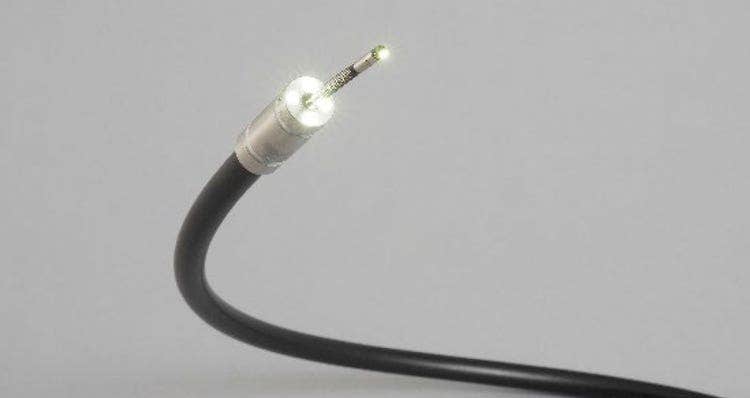

The optional LED guide tube is engineered for wind turbine inspection. Its ample illumination enables you to spot defects faster in large, dark spaces—like a gearbox—reducing the time needed to obtain good images. When you have to maneuver, the semiflexible guide tube makes it easier for you to position it where you want to capture the images you need. Using just one hand, you can easily control the 4 mm scope and maneuver it to view difficult-to-reach areas of the gearbox.
Easy to Carry, Easy to Clean
Weighing only 1.16 kg (2.56 lb), the compact and small IPLEX G Lite-W video borescope is easy to transport to challenging locations, like the top of the nacelle. Using a commercially available magnetic hook and arm, you can position both the main unit and scope where it’s the most convenient. The ergonomic, handheld design and responsive touch screen enable you to use and control the video borescope while wearing gloves in the narrow confines of a nacelle.
The scope’s smooth oil-resistant coating makes cleaning the video borescope simple. Even if oil has adhered to the insertion tube, it easily wipes off using a clean cloth, so you can pack up and get back to the office faster.
s
Boost Inspection Precision with Integrated 3D Analysis

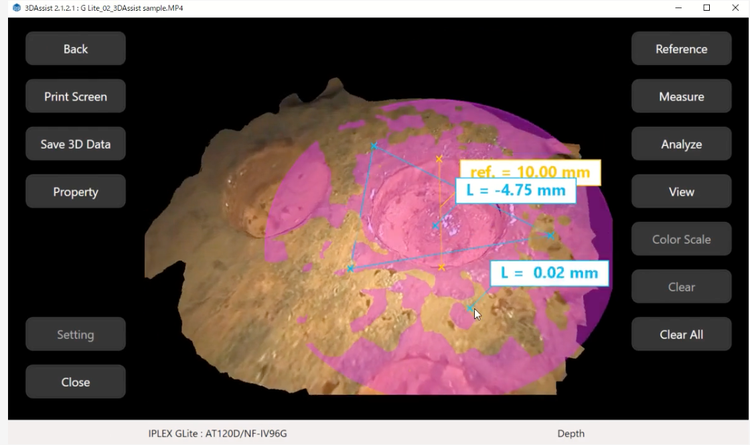

Combine standard optical adapters with our 3DAssist™ software* to enable advanced 3D modeling and comparative measurement. This powerful integration significantly reduces inspection time while dramatically enhancing inspection quality.
*IPLEX G Lite-W is not compatible with 3DAssist software.
Specifications
IPLEX G Lite and IPLEX G Lite-W Specifications
Basic Functions
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Management Functions
| Recording media | Norma | SDHC (with supplied SDHC) |
| Constant video | microSDHC （using the recommended parts） *Set the constant video function to ON |
|
| Internal memory | Available (only during still image recording) | |
| Overlay | Selectable 30-character title with date, time, optical tip, logo, and system setting | |
| Thumbnail image display | Recorded images can be displayed as thumbnails | |
| Still image recording | Resolution | H768 × V576 (pixels) |
| Recording format | Compressed JPEG format | |
| Video recording | Resolution | H768 × V576 (pixels) |
| Recording format | MPEG 4 AVC/H.264 comforms to baseline profile; Windows Media Player 12 compatible |
|
| Index function | Maximum 100 index with 1 movie file | |
| Frame rate | Selectable 60 fps/30 fps |
Measurement Functions
| Scalar measurement | Uses the reference length to measure object length |
Stereo Measurement Functions – Upgrade for Optional Functions (for IPLEX G Lite only)
| Distance | Distance between two points |
| Point-to-line | Perpendicular distance between a point and a user-defined line |
| Depth | Orthogonal depth/height distance between a point and a user-defined plane |
| Area/Lines | Multiple point circumference and area measurement |
Operating Environment
| Operating temperature | Insertion tube | In air: -25 ℃ to 100 ℃ (-13 °F to 212 °F); in water: 10 ℃ to 30 ℃ (50 °F to 86 °F) |
| Other parts | In air: -10 ℃ to 40 ℃ (14 °F to 104 °F) (with battery) | |
| In air: 0 ℃ to 40 ℃ (32 °F to 104 °F) (with AC power adapter and charged battery) | ||
| Relative humidity | All parts | 15 to 90% |
| Liquid resistance | All parts | Operable when exposed to machine oil, light oil, or 5 % saline solution |
| Dust proofing and waterproofing | Insertion tube | Operable under water with viewing tip adaptor attached Not operable underwater with stereo measurement tip adaptors IV94 series — Up to an equivalent to 3.5 m (11.5 ft) in depth IV96 series — Up to an equivalent to 10 m (32.8 ft) in depth |
| Other parts | IP65; not operable under water (battery and other covers must be closed) |
MIL-STD Compliance
The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461G.
No warranty is given as to damage-free under any conditions. Please ask your local Evident representative for details.
| Type | Method |
| Vibration | MIL-STD-810G、METHOD 514.7 Procedure I (General vibration test) |
| Shock | MIL-STD-810G、METHOD 516.7 Procedure IV (Transit drop test) |
| Water Resistance | MIL-STD-810G、METHOD 506.6 Procedure I (Rain and blowing rain test) |
| Humidity | MIL-STD-810G、METHOD 507.6 Procedure II |
| Salt Fog | MIL-STD-810G、METHOD 509.6 |
| Sand and Dust | MIL-STD-810G、METHOD 510.6 Procedure I (Blowing dust test) |
| Icing/Freezing Rain | MIL-STD-810G、METHOD 521.4 |
| Explosive Atmosphere | MIL-STD-810G、METHOD 511.6 Procedure I (Operation in an explosive atmosphere test) |
| Electromagnetic Interference (EMI) | MIL-STD-461G、RS103 All ships above decks |
Optical Tip Adaptor Specifications
4.0 mm Viewing Tip Adaptors for IPLEX G Lite
| AT80D/FF-IV94G | AT120D/NF-IV94G | AT120D/FF-IV94G | AT100S/NF-IV94G | AT100S/FF-IV94G | ||
| Optical system | Field of view | 80° | 120° | 120° | 100° | 100° |
| Direction of view | Forward | Side | ||||
| Depth of field*1 | 35 to ∞ mm | 2 to 200 mm | 17 to ∞ mm | 2 to 15 mm | 8 to ∞ mm | |
| Distal end | Outer diameter*2 | Φ4.0 mm | ||||
| Distal end*3 | 19.0 mm | 21.7 mm | ||||
| Oil clearing | Available | ー |
6.0 mm Viewing Tip Adaptors for IPLEX G Lite
| AT40D-IV96G | AT80D/NF-IV96G | AT80D/FF-IV96G | AT120D/NF-IV96G | AT120D/FF-IV96G | ||
| Optical system | Field of view | 40° | 80° | 80° | 120° | 120° |
| Direction of view | Forward | |||||
| Depth of field*1 | 200 to ∞ mm | 9 to ∞ mm | 35 to ∞ mm | 2 to 200 mm | 19 to ∞ mm | |
| Distal end | Outer diameter*2 | Φ6.0 mm | ||||
| Distal end*3 | 18.4 mm | 18.9 mm | 18.8 mm | 18.9 mm | 18.8 mm | |
| Oil clearing | Available |
| AT80S-IV96G | AT120S/NF-IV96G | AT120S/FF-IV96G | AT220D-IV76 | AT100D/100S-IV76 | ||
| Optical system | Field of view | 80° | 120° | 120° | 220° | 100°/100° |
| Direction of view | Side | Forward | Forward/Side | |||
| Depth of field*1 | 15 to ∞ mm | 1 to 25 mm | 3 to ∞ mm | 1.6 to ∞ mm | 2.0 to ∞ mm | |
| Distal end | Outer diameter*2 | Φ6.0 mm | Φ8.4 mm | Φ6.0 mm | ||
| Distal end*3 | 24.2 mm | 21.1 mm | 29.5 mm | |||
| Oil clearing | ー |
Stereo Tip Adaptors (4.0 mm and 6.0 mm) for IPLEX G Lite
| AT50D/50D-IV94 | AT50S/50S-IV94 | AT60D/60D-IV96 | AT60S/60S-IV96 | ||
| Optical system | Field of view | 50°/50° | 60°/60° | ||
| Direction of view | Forward | Side | Forward | Side | |
| Depth of field*1 | 5 to ∞ mm | 4 to ∞ mm | 5 to ∞ mm | 4 to ∞ mm | |
| Distal end | Outer diameter*2 | Φ4.0 mm | Φ6.0 mm | ||
| Distal end*3 | 24.3 mm | 28.4 mm | 24.9 mm | 31.3 mm |
Optical Specification for IPLEX G Lite-W
| Optical system | ||
| Field of view | 120° | |
| Direction of view | Forward | |
| Depth of field*1 | 4 to ∞ mm | |
| Distal end | ||
| Outer diameter*2 | Φ4.0 mm | |
| Distal end*3 | 19.7 mm | |
| Oil clearing design | ||
| Available |
Accessory: LED Guide Tube MAJ-2535
Specifications
| Outer diameter of distal end | Φ17.9 mm |
| Outer diameter of tube | Φ13 mm |
| Length of tube | 889 mm (35 in.) |
| Outer diameter of main unit (including projections) | Φ50 mm × 240 mm (2 in. × 9.4 in.) |
| Weight (including batteries) | 500 g (1.1 lb) |
| Power supply | 4 AAA size nickel metal hydride batteries that conform to IEC62133-1 |
| Rated power supply | 4.8 V (1.2 V × 4 in series) |
| Continuous lighting time | Normal mode: about 3 hours; economy mode: about 6 hours |
Operating Environment
| Operating temperature | Tube: -25 ℃ to 100 ℃ (-13 °F to 212 °F) Main unit: -10 ℃ to 40 ℃ (14 °F to 104 °F) (in air) |
| Operating environment humidity | 15 to 90% (relative humidity) |
| Liquid resistance | Operable when exposed to machine oil, light oil, or 5 % saline solution |
| Dust proofing and waterproofing | IP55; not operable under water (battery cover must be closed) |
*1. Indicates the viewing distance with optimal focus.
*2. The adaptor can be inserted into a ø4.0 mm, ø6.0 mm, and ø8.4 mm hole when it is mounted on the scope.
*3. Indicates the length of the rigid portion at the scope’s distal end when mounted.

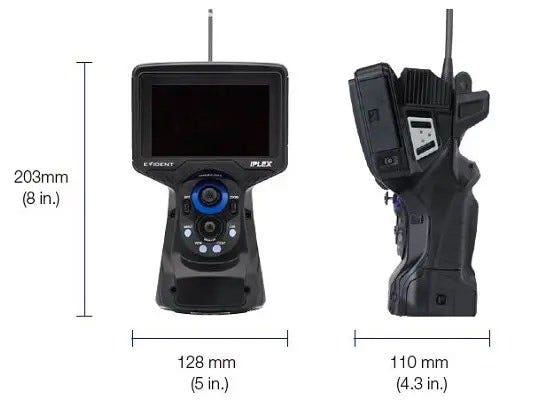

IPLEX G Lite/IPLEX G Lite-W Videoscope Dimensions
Software
ViSOL™ Visual Inspection Workflow Solution
Connecting You with More
Streamline your visual inspections with ViSOL. Designed to intuitively organize, analyze, and report inspection data, ViSOL delivers actionable insights with advanced analytics, clear visualization, and seamless collaboration. A fully scalable cloud software solution, ViSOL supports digital transformations for individuals and organizations at any scale.
