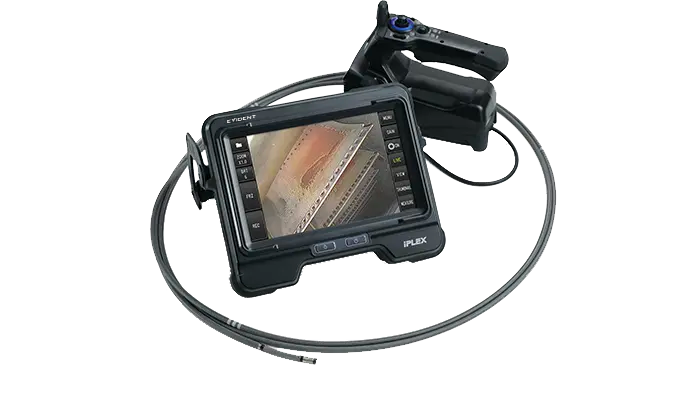

IPLEX GX/GT Videoscopes
With interchangeable insertion tubes and light sources, an 8 inch touch screen, and advanced imaging features, the IPLEX GX/GT videoscope delivers an optimal balance of versatility, imaging capabilities, and ease of use.
The Right Tool for the Job
With interchangeable insertion tubes and light sources, an 8-inch touch screen, and advanced imaging features, the IPLEX™ GX/GT video recording borescope delivers an optimal balance of versatility, imaging capabilities, and ease of use.
- Visual Inspection
- Video Borescopes
Unleash the Power of One
IPLEX™ One Videoscope Solution
The 10th generation of the IPLEX videoscope system, IPLEX One is a unified, software-driven platform that empowers you to work faster, see more, and stay ahead. Combining groundbreaking Swoptix 3D measurement technology with viewing and analysis upgrades and modular scalability, IPLEX One redefines what’s possible in remote visual inspection.

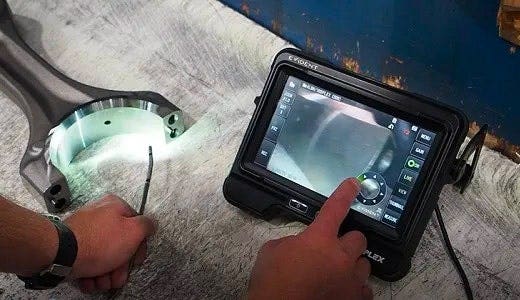

Powerful Features at Your Fingertips

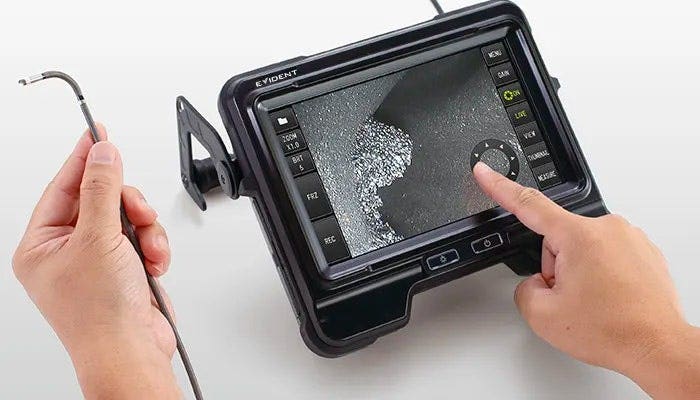

- Easy-to-use touch screen and hot key controls
- Position the screen where it’s comfortable for you
- Bright and clear images with smart video
Powerful Features at Your Fingertips
- Easy-to-use touch screen and hot key controls
- Position the screen where it’s comfortable for you
- Bright and clear images with smart video
See the Difference
A vivid 8-inch LCD monitor delivers clear, bright images, helping you spot defects quicker.
Precise Movements with a Light Touch
Responsive TrueFeel™ articulation enables you to control the scope’s tip with precise movement so that you can navigate to your target area quickly and stay in position with a locking capability.
A light touch of the control helps minimize fatigue when working for long hours.

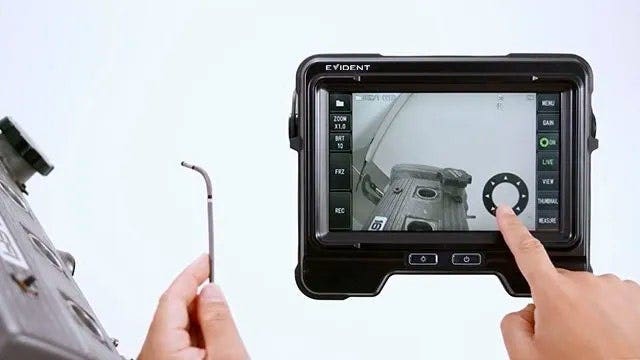

Convenient Controls
The large monitor leaves plenty of room to display both your inspection image and quick control buttons. Most functions can be controlled using the touch screen, including the articulation. If you want to use the full screen to view images, the hot keys on the controller give you control over the most important functions.
Innovative Imaging Improves Visual Inspections
Bright Illumination
The IPLEX GX/GT video borescope’s LED light source is 30% brighter than its predecessor (the IPLEX RX) to facilitate inspection in large, wide spaces.
IPLEX RX/RT (predecessor)
IPLEX GX/GT
IPLEX RX/RT (predecessor)
IPLEX GX/GT
Crisp Images
The video borescope’s noise reduction algorithm makes it easier to locate problems and defects in dark areas.
Smooth 60 fps Video
Capture smooth videos with the video borescope’s high frame rate. If you are recording a moving object, you can obtain clear videos with no stutter.
IPLEX RX/RT (predecessor)
IPLEX GX/GT
Bookmark
Smart Video Recording
Record still images and video simultaneously
With the push of a button, you can capture still images while recording a video without interruption.
Bookmark

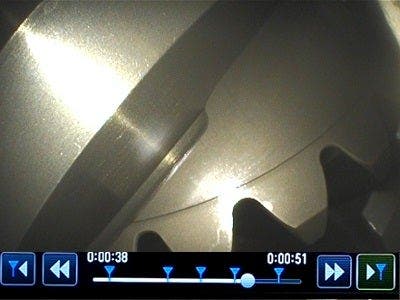

Add bookmarks to save time and quickly find critical moments during video reviews.
Constant video*
Never lose critical inspection recordings. The video recording borescope automatically records the last 30 minutes of your inspection even if you forget to press the record button.
*Available only with the IPLEX GX model and requires an optional microSDHC card.
Powerful Measurement at Your Fingertips
The video recording borescope is equipped with scalar measurement as a standard feature, enabling you to size objects using a reference defect. For more advanced functionality, upgrade to the stereo measurement option to size objects using precise three-dimensional coordinates.
Create Reports in Minutes
InHelp™ inspection assist software streamlines the whole process, from inspection to report generation, dramatically improving your work efficiency.
- On your borescope screen: create a customized workflow to streamline inspections
- On your PC: generate inspection reports using customizable templates
Other features
- Durable, 4-layer construction insertion tube
- PulsarPic™ processor for constant image optimization
- WiDER™ technology for image contrast matching
- Long-lasting, 186-minute battery life

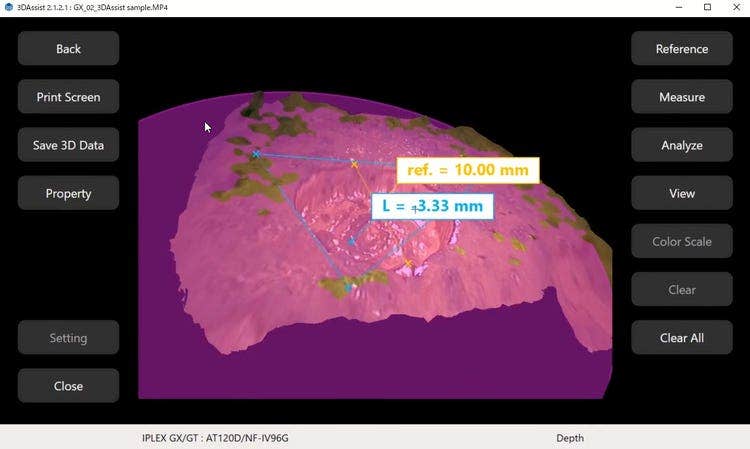

Boost Inspection Precision with Integrated 3D Analysis
Combine standard optical adapters with our 3DAssist™ software to enable advanced 3D modeling and comparative measurement. This powerful integration significantly reduces inspection time while dramatically enhancing inspection quality.
Versatile
Interchangeable Scopes and Light Sources
Adapt the Video Borescope to Your Inspection Tasks with Modular Components
Scopes are available in 4 mm and 6 mm diameters with lengths up to 10 meters (32 feet). Interchangeable illumination modules also let you to change between white LED, UV, or IR.
Scope unit
- Scope diameter 6.0 mm: length 2.0 / 3.5 / 7.5 / 10 m
- Scope diameter 4.0 mm: length 2.0 / 3.5 m
Light sources
- White light (standard): standard inspections
- Ultraviolet (UV, optional): detect hairline cracks
- Infrared (IR, optional): view objects in dark areas
The scopes and illumination modules can be changed on site quickly and easily, reducing downtime.
White light
UV light
Easy Data Sharing and Collaboration
Using the recommended USB wireless LAN adapter, you can securely send saved images and video from your IPLEX to your PC using the IPLEX desktop app wirelessly or to a smart phone or tablet using the IPLEX Image Share app. This makes it easier to get your data off your video borescope and enables you to share it with others for help diagnosing issues.
Tested Tough

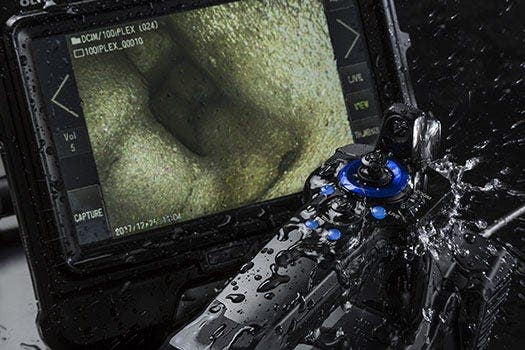

Designed to meet IP65 standards for dust and water resistance and built to pass U.S. Department of Defense testing (MIL-STD) for protection against:
- Drops of up to 1.2 meters (4 feet)
- Vibration
- Blowing rain
- Dust
- High humidity
- Salt fog
- Freezing rain
- Electromagnetic environments
- Explosive atmospheres
See Clearly in Oily Environments

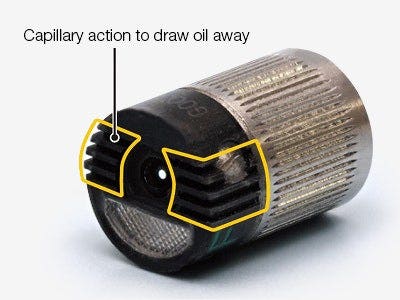

The grooves on the oil-clearing tip adapter use capillary action to draw oil away from the lens, keeping your images clear and visible so that you don't have to stop your inspection to wipe oil off the scope’s lens.
Other Features
- Illuminated buttons for dark environments
- High temperature alert
- HDMI video out

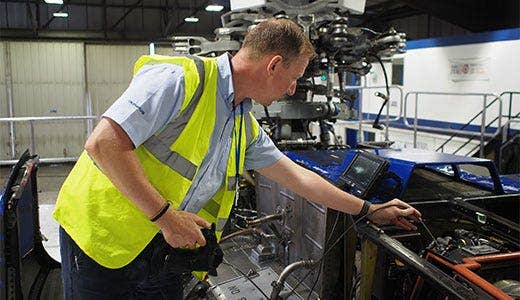

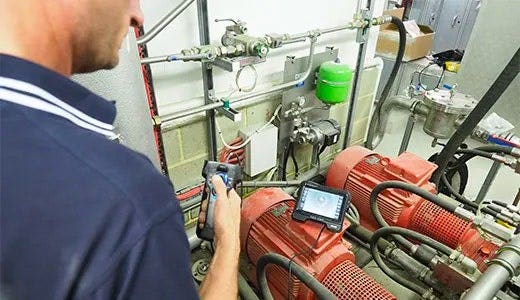

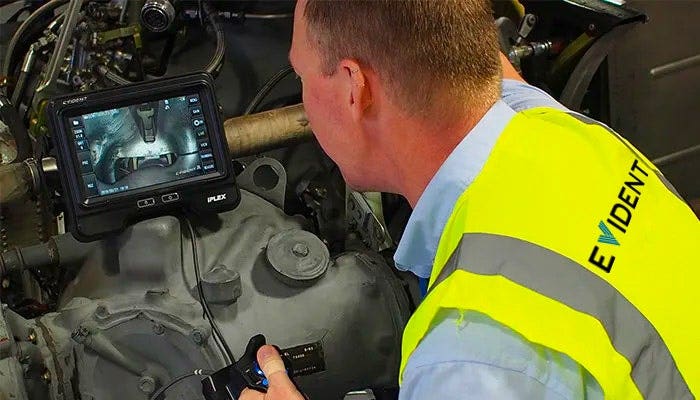

Applications
Specifications
BASIC FUNCTIONS
SCOPE UNIT
| Model No. | IV9420G | IV9435G | IV9620G | IV9635G | IV9675G | IV96100G | |
| Insertion tube | Scope Diameter | Φ4.0 mm | Φ6.0 mm | ||||
| Scope length | 2.0 m (6.6 ft.) | 3.5 m (11.5 ft.) | 2.0 m (6.6 ft.) | 3.5 m (11.5 ft.) | 7.5 m (24.6 ft.) | 10.0 m (32.8 ft.) | |
| Exterior | High durability tungsten braid | ||||||
| Tube flexibility | Uniform stiffness | Tapered Flex tube with flexibility gradually increasing toward the distal end | |||||
| Temperature sensor | 2-stage indicator for high temperature warning | ||||||
| Articulation Section | Articulation angle up/down/right/left |
130° | 150° | 120° | 110° | ||
| Articulation operation | TrueFeel electronic scope tip articulation / fine mode articulation control using the touch screen menu | ||||||
| Approx. weight | 0.99 kg (2.2 lbs) | 1.05 kg (2.3 lbs) | 1.06 kg (2.3 lbs) | 1.17 kg (2.6 lbs) | 1.47 kg (3.2 lbs) | 1.66 kg (3.7 lbs) | |
| Dimensions (W x D x H) | 97 mm × 188 mm × 158 mm (3.8 in. × 7.4 in. × 6.2 in.) (protruding parts not included) | ||||||
| Illumination | LED illumination | ||||||
BASE UNIT
| Model No. | IPLEX GX | IPLEX GT | |
| Weight (with battery) | 1.77 kg (3.9 lbs) | ||
| Dimensions (W x D x H) | 241 mm × 190 mm × 70 mm (9.5 in. × 7.5 in. × 2.8 in.) (protruding parts not included) | ||
| Dimensions of carrying case | 375 mm × 525 mm × 243 mm (14.8 in. × 20.7 in. × 9.6 in.) (carry-on size on most airlines) | ||
| Display | 8-inch daylight view WVGA LCD with capacity-type touch screen, 5 step adjustable LCD backlight | ||
| Power supply | AC power | 100 V to 240 V, 50/60 Hz (with supplied AC adaptor) | |
| Battery | 10.8 V nominal, approx.(with supplied battery) Battery operation time: approx. 186 minute |
||
| Video output standard | HDMI | Type A HDMI 1.4 | |
| Headset (microphone in/ audio out) | Φ3.5 mm mini plug CTIA | ||
| Wireless live streaming | Using the recommended USB wireless LAN adapter, attach it to the Type A USB connector; available for iOS devices using the IPLEX Image Share app | ||
| Wireless file transfer | Attach the recommended USB wireless LAN adapter to the Type A USB connector; available for PC using the IPLEX desktop app | ||
| Scope unit interchangeability | Available for all scope model combinations | Available between the same scope models | |
SOFTWARE FEATURES
| Image features | 5X digital zoom, 16-step brightness control | |
| Gain control | 4-step adjustable gain control (Manual, Auto, Wider1, Wider2) |
Auto |
| Dynamic noise reduction | Available | - |
| Sharpness control | 4-step adjustable sharpness control | - |
| Saturation control | 3-mode adjustable control of color saturation (Monotone, Natural, Vivid) |
- |
| Display text options | 30-character title display | |
| Note text options | 30-character title display, mark, free drawing | - |
| Image display functions | Live image can be inverted to right and left, inverted to up and down, and rotated 180 degrees | |
RECORDING MANAGEMENT FUNCTIONS
| Recording media | Normal | SDHC (with supplied SDHC) | |
| Constant video | microSDHC (using the recommended parts; set the constant video function to ON) | - | |
| Internal Memory | Available (only the still images are recorded) | - | |
| Overlay | Zoom, Brightness, Date/Time, Title, Optical Tip Adaptor, EVIDENT logo, and system setting | ||
| Thumbnail image display | Recorded images can be displayed as thumbnails | ||
| Still image recording | Resolution | H768 x V576（Pixel | |
| Recording format | Compressed JPEG format | ||
| Video recording | Resolution | H768 x V576（Pixel | |
| Recording format | MPEG 4 AVC/H.264 Conforms to baseline profile; Windows Media Player 12 compatible |
||
| Frame rate | 60 fps / 30 fps | ||
MEASUREMENT FUNCTIONS
STEREO MEASUREMENT FUNCTIONS
OPERATING ENVIRONMENT
| Operating temperature | Insertion tube | In air: -25 ℃ to 100 ℃ (-13 °F to 212 °F); in water: 10 ℃ to 30 ℃ (50 °F to 86 °F) |
| Other parts | In air: -10 ℃ to 40 ℃ (14 °F to 104 °F) (with battery) | |
| In air: 0 ℃ to 40 ℃ (32 °F to 104 °F) (with AC power adaptor and battery charge) | ||
| Relative humidity | All parts | 15 to 90% |
| Liquid resistance | All parts | Operable when exposed to machine oil, light oil, or 5% saline solution |
| Dust proofing and water proofing |
Insertion tube | Operable under water with viewing tip adaptor attached Not operable under water with stereo measurement tip adaptors IV94 series - up to an equivalent to 3.5 m (11.5 ft) in depth IV96 series - up to an equivalent to 10 m (32.9 ft) in depth |
| Other parts | IP65; not operable under water (battery cover and others must be closed) |
MIL-STD COMPLIANCE
The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461G tests.
No warranty is given as to damage-free under any conditions. Please ask Evident sales representative for details.
OPTICAL TIP ADAPTOR SPECIFICATIONS
4.0 mm Viewing Tip Adaptors
| AT80D/FF-IV94G | AT120D/NF-IV94G | AT120D/FF-IV94G | AT100S/NF-IV94G | AT100S/FF-IV94G | ||
| Optical system | Field of view | 80° | 120° | 120° | 100° | 100° |
| Direction of view | Forward | Side | ||||
| Depth of field *2 | 35 to ∞ mm | 2 to 200 mm | 17 to ∞ mm | 2 to 15 mm | 8 to ∞ mm | |
| Distal end | Outer diameter *3 | Φ4.0 mm | ||||
| Distal end *4 | 19.0 mm | 21.7 mm | ||||
| Oil clearing | Available | - | ||||
6.0 mm Viewing Tip Adaptors
| AT40D-IV96G | AT80D/NF-IV96G | AT80D/FF-IV96G | AT120D/NF-IV96G | AT120D/FF-IV96G | ||
| Optical system | Field of view | 40° | 80° | 80° | 120° | 120° |
| Direction of view | Forward | |||||
| Depth of field *2 | 200 to ∞ mm | 9 to ∞ mm | 35 to ∞ mm | 2 to 200 mm | 19 to ∞ mm | |
| Distal end | Outer diameter *3 | Φ6.0 mm | ||||
| Distal end *4 | 18.4 mm | 18.9 mm | 18.8 mm | 18.9 mm | 18.8 mm | |
| Oil clearing | Available | |||||
| AT80S-IV96G | AT120S/NF-IV96G | AT120S/FF-IV96G | AT220D-IV76 | AT100D/100S-IV76 | ||
| Optical system | Field of view | 80° | 120° | 120° | 220° | 100°/100° |
| Direction of view | Side | Forward | Forward/Side | |||
| Depth of field *2 | 15 to ∞ mm | 1 to 25 mm | 3 to ∞ mm | 1.6 to ∞ mm | 2.0 to ∞ mm | |
| Distal end | Outer diameter *3 | Φ6.0 mm | Φ8.4 mm | Φ6.0 mm | ||
| Distal end *4 | 24.2 mm | 21.1 mm | 29.5 mm | |||
| Oil clearing | - | |||||
Stereo Tip Adaptors (4.0 mm and 6.0 mm)
| AT50D/50D-IV94 | AT50S/50S-IV94 | AT60D/60D-IV96 | AT60S/60S-IV96 | ||
| Optical system | Field of view | 50°/50° | 60°/60° | ||
| Direction of view | Forward | Side | Forward | Side | |
| Depth of field *2 | 5 to ∞ mm | 4 to ∞ mm | 5 to ∞ mm | 4 to ∞ mm | |
| Distal end | Outer diameter *3 | Φ4.0 mm | Φ6.0 mm | ||
| Distal end *4 | 24.3 mm | 28.4 mm | 24.9 mm | 31.3 mm | |
*1. Upgrade for optional function.
*2. Indicates the viewing distance with optimal focus.
*3. The adaptor can be inserted into a ø4.0 mm, ø6.0 mm, and ø8.4 mm hole when it is mounted on the scope.
*4. Indicates the length of the rigid portion at the scope’s distal end when mounted.
Software
ViSOL™ Visual Inspection Workflow Solution
Connecting You with More
Streamline your visual inspections with ViSOL. Designed to intuitively organize, analyze, and report inspection data, ViSOL delivers actionable insights with advanced analytics, clear visualization, and seamless collaboration. A fully scalable cloud software solution, ViSOL supports digital transformations for individuals and organizations at any scale.
