Vanta for Car Catalyst Recycling
XRF Analysis
Overview
Platinum Group Metals Analysis for Car Catalyst Recycling
Measure palladium, platinum, and rhodium quickly and easily

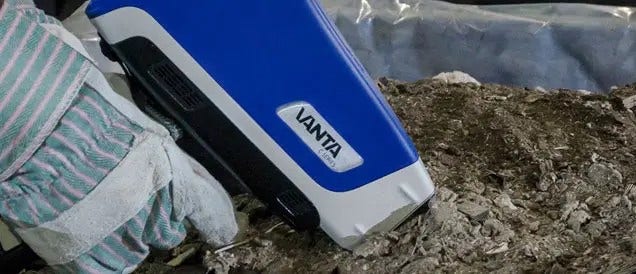

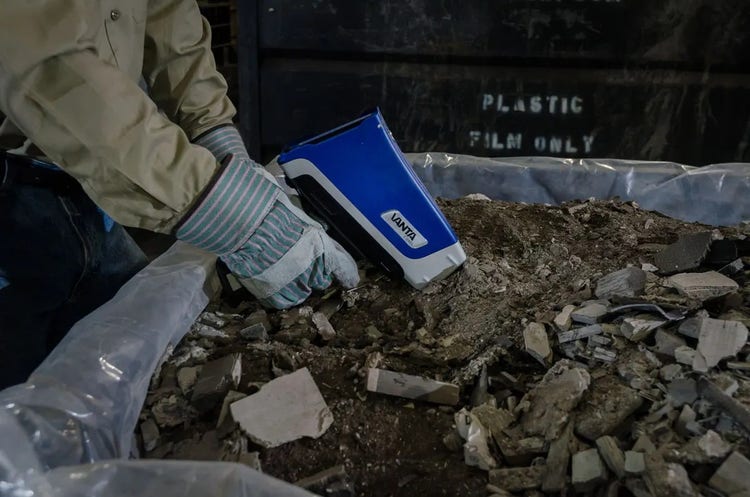

Vanta™ handheld XRF analyzers provide fast, accurate measurement of the valuable platinum group metals (PGMs) palladium (Pd), platinum (Pt), and rhodium (Rh) found in car catalytic converter material. On-the-spot measurements enable efficient sorting and price evaluation of catalyst scrap throughout the recycling circuit.
- Quickly sort catalytic converters to recover the PGMs
- Measure the PGM concentration in minutes for accurate pricing
- Identify low-value monoliths (unloaded or washed-out)
Along with analytical excellence, Vanta handheld XRF analyzers feature exceptional durability. Every Vanta analyzer is IP55 or IP54 rated for dust and water resistance, drop tested to military standards (MIL-STD-810G), and withstands a wide temperature range of –10 °C to 50 °C (14 °F to 122 °F).
Fraud Protection
To help protect against fraud, Vanta XRF analyzers can detect elements that could be added to catalyst materials to falsely boost their precious metals values. The car catalyst element suite is comprehensive, so you know the materials you are buying have not been stripped of PGMs or added to or contaminated with elements such as:
- Tantalum (Ta)
- Selenium (Se)
- Lead (Pb)
The sorting of materials can be further aided with elements such as:
- Tungsten (W)
- Cerium (Ce)
- Zirconium (Zr)
Ensure the materials you are buying
have not been added to or contaminated.
Fast and Accurate Sorting

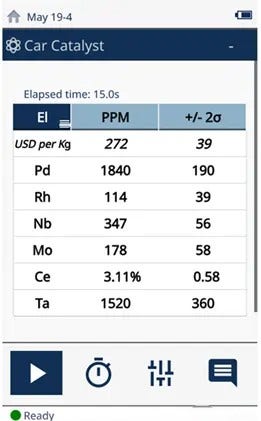

Before homogenization, recyclers should use the Vanta XRF analyzer to sort and separate materials of the same type. Sort into three or four grade ranges, such as oxygen sensors, three-way converters, two-way converters, and diesel particulate filters (DPF). To improve sorting, define these grade ranges within the analyzer database using the Pseudo Elements function.
Easy Sample Prep

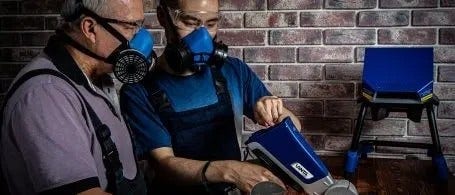

For the most representative and accurate results, we recommend you grind, sieve, and homogenize the catalyst samples to properly prepare them for XRF analysis. Combine the analyzer with the portable Vanta Work Station to take PGM measurements in a fully interlocked system. The Vanta Work Station offers hands-free testing of catalyst samples for an easier and more comfortable analysis.
Maximize ROI with Vanta Handheld XRF for Car Catalyst Recycling
XRF Tips for Platinum Group Metals Analysis
Follow these best practices to optimize your Vanta XRF analyzer for faster testing and accurate measurements of Pt, Pd, and Rh.
Car Catalyst Analysis with Handheld XRF
Application specialist Vladimir Vermus discusses how the Vanta XRF analyzer provides quick, accurate testing of PGMs for efficient car catalyst recycling.
Vanta for Car Catalyst Infographic
Take a look at this infographic to see how Vanta handheld XRF analyzers are used in car catalyst analysis.
Car Catalyst Recycling FAQs
XRF expert Peter Faulkner answers questions and provides insights on the car catalyst recycling industry.
Vanta for Car Catalyst Recycling
Access our brochure to see how Vanta handheld XRF can optimize your process and quality while maximizing your return on investment.
Featured Page
Optimized for Car Catalyst Recycling

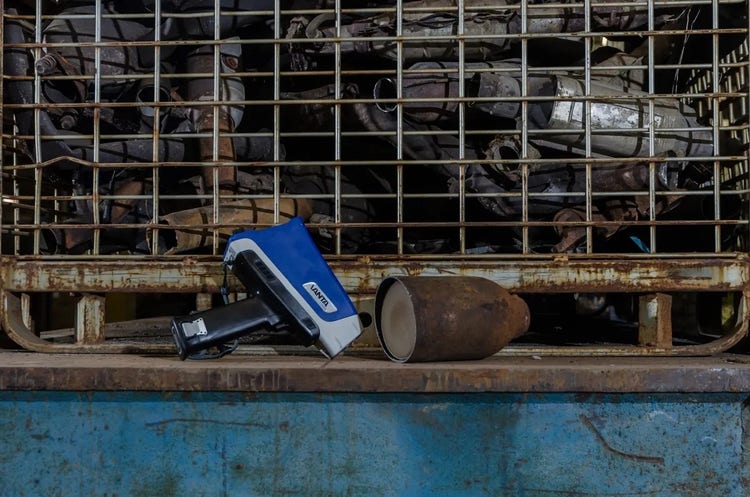

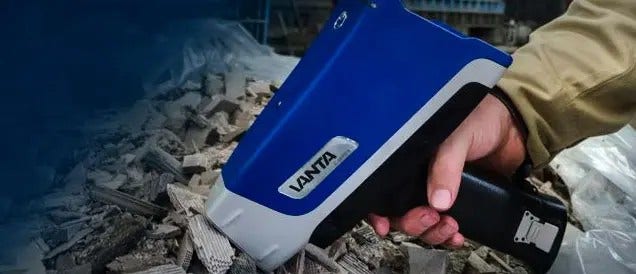

Vanta™ handheld XRF analyzers are used throughout the car catalyst recycling process to quickly verify and price material. Within minutes, the Vanta analyzer can identify the platinum group metals (PGMs) platinum (Pt), palladium (Pd), and rhodium in spent catalyst. When properly sorted and prepared, these valuable metals can be recovered and reused to produce new car catalytic converters and other equipment.
No matter your position in the recycling circuit, Vanta™ handheld XRF analyzers can optimize your process and quality while maximizing your return on investment. From decanning through sorting, crushing, and grinding to preparing the shipment for refining, the fast XRF results enable you to avoid empty and contaminated cores and provide the ideal mix for further refining.
The car catalyst recycling process must be flexible due to the wide range of vehicle types and ages, as well as their engine sizes and types. To provide this flexibility, the Vanta analyzer software incorporates User Factors, which give you the capability to make individual calibrations for each grade range and region as needed.
Choose Your XRF Analyzer for Car Catalyst Recycling
Vanta XRF analyzers include options for X-ray source and detector type to suit a range of applications in both scrap recycling and precious metals testing. For car catalyst recycling, our tungsten (W) X-ray tube is the ideal solution combined with either a silicon drift detector (SDD) or PIN detector:
- PIN detector: the economical choice for initial sorting
- SDD with a large measuring window: ideal for fully prepared samples, offering the highest accuracy
Request a Demo on Your Samples
Specifications
Vanta Specifications
Element: 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery
M series (Rh W) and C series (Ag): 8–50 kV
C series (Rh W): 8–40 kV
L series (W) and Element (W): 35 kV (2 watts)
Element-S (Ag): 50kV
L series and Element: Fixed aluminum filter and no internal collimation
C series: Silicon drift detector
L series and Element: Silicon PIN detector
18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F)
Humidity: 10% to 90% relative humidity non-condensing
C and L series IP55: dust protected and protected against water jets from all directions
M and C series: Solid detector shutter to help prevent detector damage
Cloud enabled with user fleet manager capability
(1) USB 2.0 type mini-B port for connection to computer.
Element: Field Stand, Soil Foot, and Holster
*Analyzer prices vary depending on the instrument features and X-ray tube selection
Accessories
The Vanta™ analyzer is our most advanced handheld X-ray fluorescence (XRF) device. IP certified and drop tested, the robust Vanta XRF analyzer provides you with rapid, accurate element analysis for laboratory-quality results in the field.
Olympus offers a suite of optional accessories that help you maximize the efficiency of your Vanta analyzer in a range of applications.

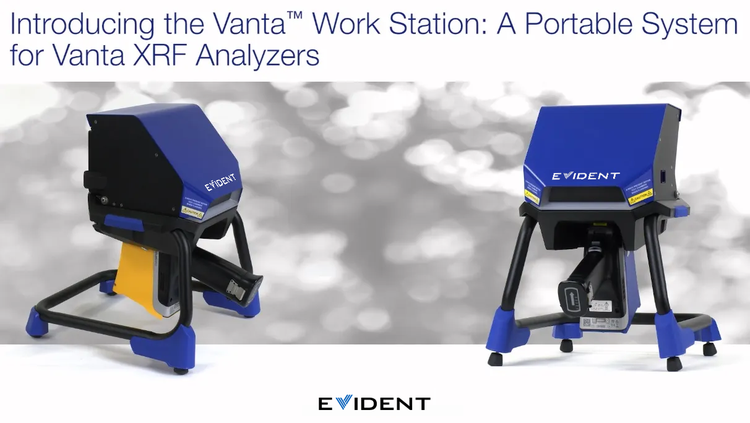

Vanta Work Station

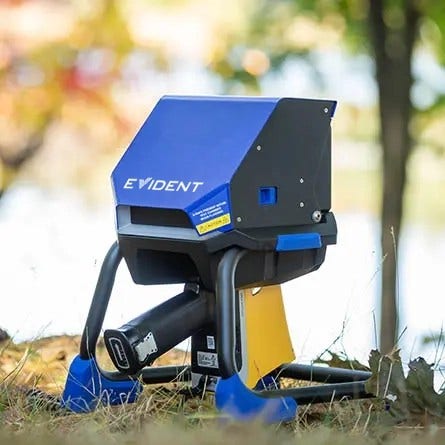

The portable Vanta Work Station is battery operated for testing on the go. A fully interlocked lid and 360-degree shielding make it convenient for bagged, prepped, and liquid samples or small objects, including jewelry and circuit boards. In this closed-beam setup, users operate the analyzer using Vanta PC software or the Vanta mobile app.
The portable Vanta Work Station is effective for a variety of applications:
- Geo exploration
- Mining process control
- RoHS/consumer products
- Environmental analysis
The Work Station’s stable platform enables longer test times. It gives you the freedom to start a test in the Work Station and complete other tasks while the Vanta instrument performs the analysis. You can be confident that the sample is stable and its position is reproducible, helping ensure high-quality data and efficient sample throughput.
Easy to Use
- Simply click the Vanta analyzer into place, and release it with the press of a button
- Balanced lid system to prevent slamming
- Easy sample placement—no front wall or lip obstruction
- Control the Vanta analyzer and transfer data wirelessly or via a USB cable
Portable
- Battery or AC powered for benchtop or field use
- Easy to transport and set up
- Chamber and legs separate for easy storage
- Optional carrying case
Designed for Safety
- Fully shielded and interlocked chamber: 107 mm × 178 mm × 179 mm (4.2 in. × 7 in. × 7 in.)
- Radiation warning LEDs are large, clear, and prominent
Small Footprint
- 36.6 mm × 33 mm (14.4 in. × 13 in.)
Vanta Holster
Keep your Vanta analyzer safe and secure and within easy reach with the Vanta Holster. The Holster has a strap with a fastener to secure the instrument, MOLLE/PALS webbing for additional attachment options, and brass shielding.

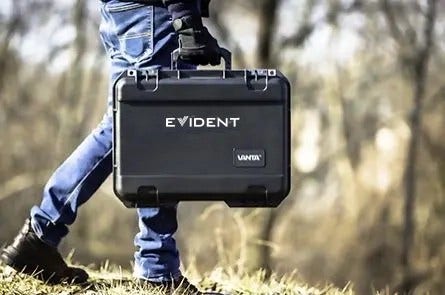

Vanta Transport Case
Rugged, hard-shell case to securely transport your Vanta handheld XRF analyzer.
Applications
Vanta™ analyzers provide fast results in a diverse range of applications. Application-specific software features enable operators to get the most out of their analyzers with simplified report creation and traceable results.
Products
Vanta for Car Catalyst Recycling
Vanta™ handheld XRF analyzers provide fast, accurate measurement of the valuable platinum group metals (PGMs) palladium (Pd), platinum (Pt), and rhodium (Rh) found in car catalytic converter material. On-the-spot measurements enable efficient sorting and price evaluation of catalyst scrap throughout the recycling circuit.
Vanta for Environmental Assessments
Vanta handheld XRF analyzers for soils and sediment analysis provide fast, accurate environmental remediation and assessment data. Simple to use, Vanta analyzers are rugged for the most demanding field applications.
Vanta for Manufacturing Quality Control/Assurance
Vanta handheld XRF analyzers for manufacturing QA/QC provide highly specific material chemistry to quickly and accurately identify pure metals and alloy grades when material accuracy is critical.

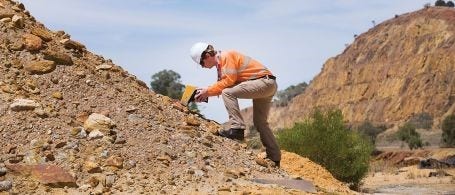

Vanta for Mining & Geochemistry
Vanta handheld XRF analyzers for mining and geochemistry provide immediate on-site elemental analysis for geochemical exploration, mining grade control, ore processing, and remediation.

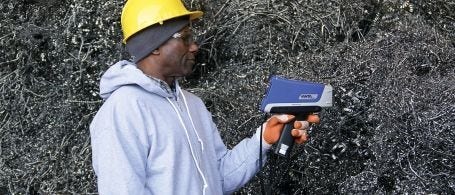

Vanta for Scrap Recycling
Vanta handheld XRF devices for recycling and scrap sorting are IP55 or 54-rated, depending on the model, to withstand rain, dirt, and dust and are drop tested using U.S. Department of Defense methods (MIL-STD-810G) to help prevent breakages and maximize uptime in the toughest scrap yards.
Vanta for PMI
Vanta handheld XRF analyzers for PMI provide highly specific material chemistry to quickly and accurately identify alloy grades to help ensure correct alloy installation in critical locations.
Vanta for Regulatory and Safety Screening
Vanta handheld XRF analyzers are used to ensure compliance with RoHS and local or international regulatory laws. Vanta analyzers provide on-the-spot chemical analysis of consumer products to quickly scan for Pb, Cd, Hg, Cr, and Br.

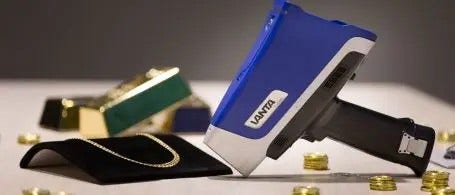

Vanta for Precious Metals Analysis
